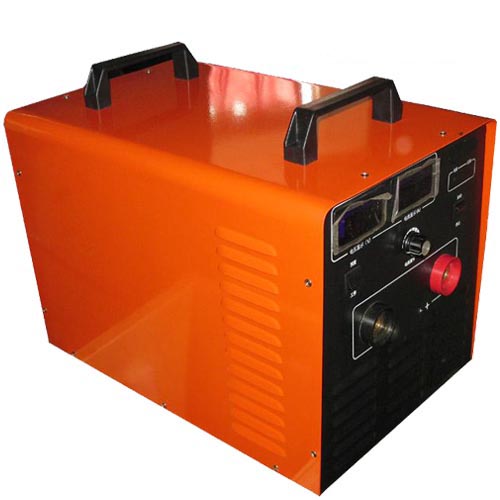

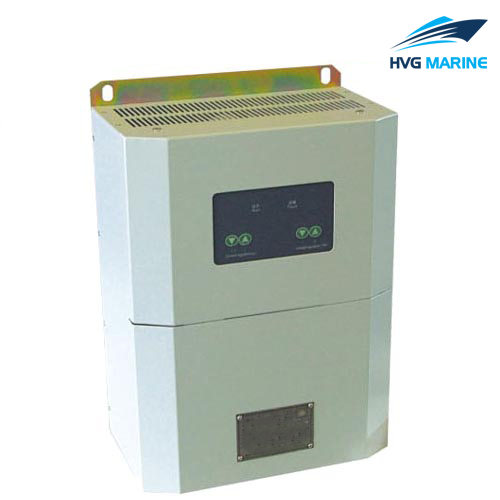

HVG MARINE ELECTRIC EQUIPMENT 0030: Multiple Function Marine Automatic Charger
Application
Multiple Function Marine Automatic Charger is used to all kinds of offshore platforms, ships, to provide a stable and reliable charging of all kinds of batteries on board.
Features
- Protection for Over-voltage,Under-Voltage of input and over-current and short circuit for output(only available for 2KW and above)
- Input voltage can be single-phase 110V to 380V or three-phase 220V to 440V
- Applicable battery capacity from 80AH to 2000AH or higher
- Three stage charging, charging mode automatic switched
- Applicable to any type of battery
- Charger Voltage Temperature Compensation Module is available for battery charger in different environments.
- Different Function Configuration is available to meet varieties requirements.
- Several dimensions are available to be easily assembly inbattery charging and discharging panel
- When the charger charges the battery while it powers the load in the same time,the charger can be automatically switched to regulated power after fully charged the battery.
- Output Voltage and Output Current can be adjusted manually.
Condition
| Working temperature | -10℃～50℃ |
| Storage Temperature | -40～85℃ |
| Relative humidity | ≤90%(40±2%) |
| Atmospheric pressure | 70～106Kpa |
| Transverse inclination | ±15° |
| Trim | ±5° |
| Rolling | ±45°(Cycle 5～12S) |
| Pitching | ±10°(Cycle 5～7S) |
