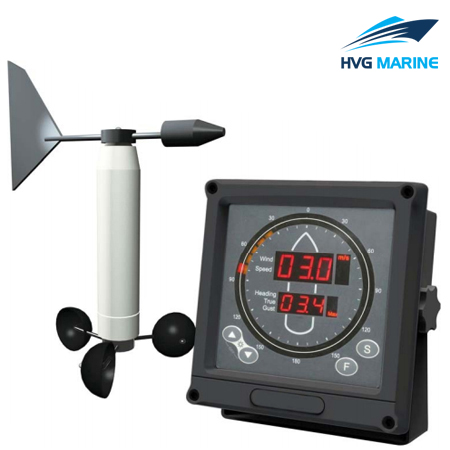

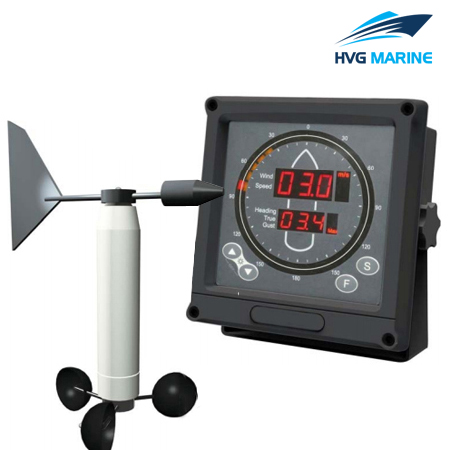

HVG MARINE ELECTRIC EQUIPMENT 0028: Marine Anemometer
Marine Anemometer is an integrated instrument for wind speed and wind direction. It is used to measure wind speed which achieves very high accuracy. Besides, it also can display relative wind direction. This product has functions of alarm and printing. It gets the approval of CCS.
Features
| Project | Data |
| Speed Display | digital LED |
| Direction Display | direction and variation LED ring |
| Heading Display | digital LED (with gyro data input) |
| True Wind Direction | digital LED (with gyro data input) |
| Max Wind Speed | digital LED display |
| Brightness Adjustment | 6 levels adjustable |
| Brown-Out Alarm | alarm with inner buzzer |
| Data Output | NMEA0183 wind speed and direction |
| NMEA Interface | RS422 output 2pin NMEA A/B |
| Direction Accuracy | ±1° |
| Direction Range | 0-359° |
| Speed Accuracy | 0.1m/s |
| Speed Range | 0-60m/s |
| Start Wind Speed | ≦1.2m/s |
| Power Supply | DC 20-32V 5W |
| Operation Temperature | -15-+55℃ |
| Storage Temperature | -20-+70℃ |
| Humidity | Relative 10-90% |
| Sensor | Operation Temperature: -15-+85℃ |
| Storage Temperature: -20-+85℃ | |
| Protection: IP56 |
