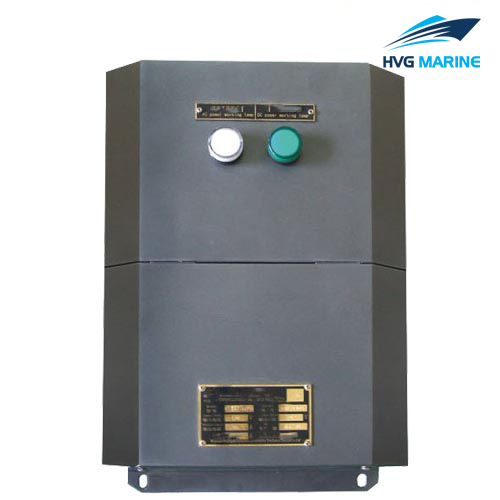

HVG MARINE ELECTRIC EQUIPMENT 0022: Marine AC UPS Power Supply

Application

Power supply adopts the control mode of pulse width modulation, power supply has the advantages of small size, high efficiency, stable output waveform, etc.

Marine AC UPS Power Supply has the characteristics of general UPS power, while considering the characteristics of the ship and the environmental requirements, the power supply products according to ABS and CCS specifications for design, meet the standards of marine electric.

Features

Pure sine wave output: the effect of AC input harmonics on the load can be completely be inhibited,and it can always provide a full range of protection and high quality sine wave power supply.
The input AC voltage range is 176-264VAC, the input frequency is 45HZ-65HZ. Output DC DC20-32V.
Advanced battery management: three step charging,float charging,equalizing charge can be automatic converted, improved the battery protection.
Perfect protection measures: output short circuit, overload protection, the whole machine overheat protection; the input DC protection and the protection of DC over voltage protection.
When the AC power out,the power supply can be switched to the input DC power supply (or battery power supply) uninterruptedly,so as to ensure uninterrupted output.

Condition

Working temperature	-10℃～50℃
Storage Temperature	-40～85℃
Relative humidity	≤90%(40±2%)
Atmospheric pressure	70～106Kpa
Transverse inclination	±15°
Trim	±5°
Rolling	±45°(Cycle 5～12S)
Pitching	±10°(Cycle 5～7S)

Technical specification:

Technical Data

Model	HVG MARINE ELECTRIC EQUIPMENT 0022
Input Voltage	AC220V±20%
Input Current	20-36VDC,need to be indicate if need AC and DC input
Output	AC220V±1% Frequency 50HZ±0.5%
Output Waveform	Pure sine wave, THD = 3% (resistive load)
Output Power	600VA-30KVA
Efficiency	≥82%
Insulation strength	Input to output AC1500V, input AC to DC AC1500V Input AC to the housing AC1500V, input DC to the housing DC1000V
Battery	Built in 24V lead acid battery (also available in other form of battery or external battery)
Protect Grade	IP20,IP22、IP44,or any other grade customer requested
Protect Function	Over-voltage,Under-Voltage of DC input(Optional) and over-current and short circuit for output,Over-heating(Internal heat sink temperature more than 85℃)
