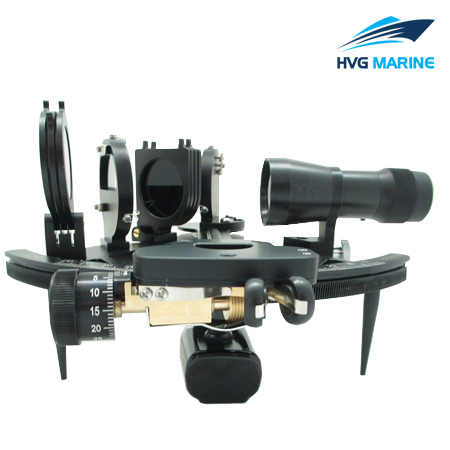

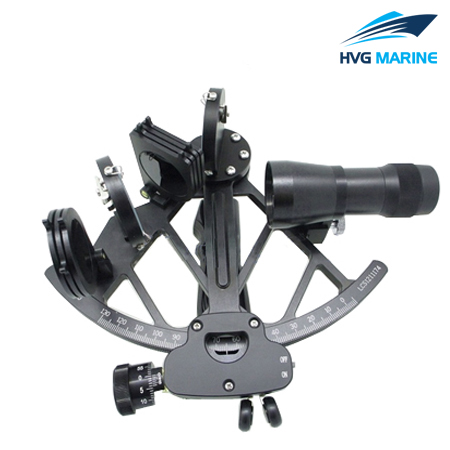

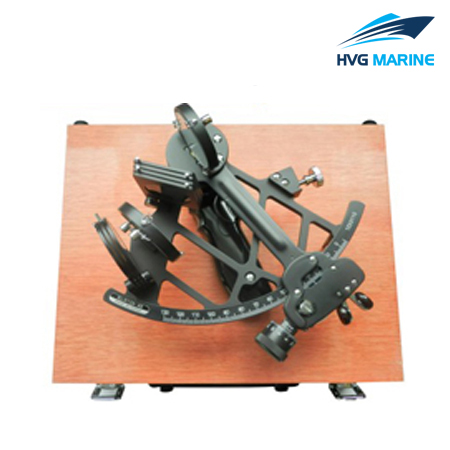

    HVG MARINE ELECTRIC EQUIPMENT 0026: Marine Sextant

    This marine sextant is used to measure the angle between two targets in the distance. It is a kind of reflection type angular measuring optical instrument. Operators could get vessels’ location via this sextant. The vertical error, error, index error of the instrument should be adjusted before use. If you are interested in this product, please feel free to contact us.

    Features

    • This sextant is a kind of reflection type angular measuring optical instrument.
    • It is used to measure the altitude of celestial bodies to obtain a position in navigation.
    • It is With movable arm on the frame

    Technical specification:

    • Specifications
    Project Data
    Measuring Range -5°~130°
    Measuring Accuracy 40 second of arc
    Discrimination 8.75 second of arc
    Telescope Magnification 3.5X
    Field
    Graduation 162mm
    Lighting Voltage 3V
    Working Temperature -30℃-50℃
