HVG MARINE ELECTRIC EQUIPMENT 0027

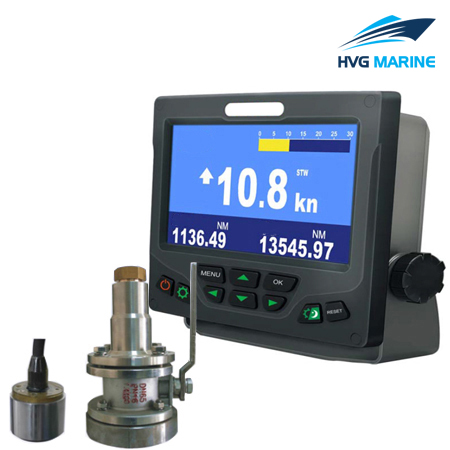

HVG MARINE ELECTRIC EQUIPMENT 0027: Speed Log

This speed log adopts the Doppler Effect theory to measure speed and voyage. The 7’’ liquid crystal display can show longitudinal velocity, voyage and distance. This product has high reliability and accuracy, and its appearance is stylish. Besides, it has personalized interface, advanced technology and simple operation. If you want to know more details, please feel free to contact us.

Features

High accuracy
High performance signal filter
Dual-beam system
Stainless steel transceiver cabinet
Liquid crystal display

Technical specification:

Specifications

Project	Data
Display	7’’ TFT
Pixel	480×234pixels
STW Speed	arrow+digital speed display
Data Output	IEC61162-1 VBW,VLW
Trip Counter	0-9999.99 nm
Total Counter	0-999999.99nm
Distance Accuracy	0.2nm
Speed Accuracy	0.2kn
Speed Range	-10-+40kn
Power Supply	AC 110/220V 50/60Hz
Operation Temperature	-15-+55℃, 0-40℃ recommended
Humidity	When 40±3℃, 93±2% relative
Protection	Displayer IP23 Controller IP23 Transceiver IP56
