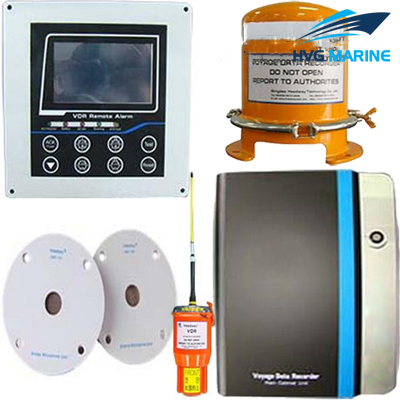

HVG MARINE ELECTRIC EQUIPMENT 0029: 20W Simplified Voyage Data Recorder
Features:
- Power: 20W
- Weight: approx. 25kg
- Voltage: AC110/220V, 50Hz/60Hz, DC24V
- Data recording: continuous recoding 30 days (main cabinet unit), 48 hours (recording medium)

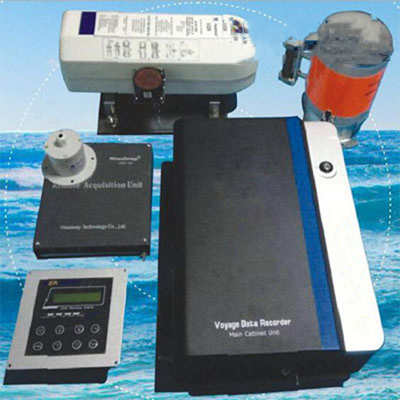

HVG MARINE ELECTRIC EQUIPMENT 0029
Technical specification:
- Configuration and main parameter:
|
Components |
Quantity |
Dimensions (unit: mm) |
Weight |
| Main cabinet unit |
1 |
437×340×100（L*W*T） (with mounting accessories) |
9.6kg |
| Remote acquisition unit |
1 |
244×214×47 (L*W*T) (with mounting accessories) |
1.4kg |
| Protective data capsule(PDC) |
1 |
205×305 (D*H) (with mounting accessories) |
8.9kg |
| Float-free protective data capsule(FPDC) |
1 |
420×150(D*H) (with mounting accessories) |
3.9kg |
| Interior microphone |
4 |
φ108×50(D*H) (with mounting accessories) |
0.2kg |
| Exterior microphone (IP56) |
2 |
φ108×50(D*H) (with mounting accessories) |
0.2kg |
| Remote alarm panel |
1 |
175×140×38(L*W*T) (with the fixed shelf) |
0.7kg |
| Total weight |
|
|
24.9kg |
