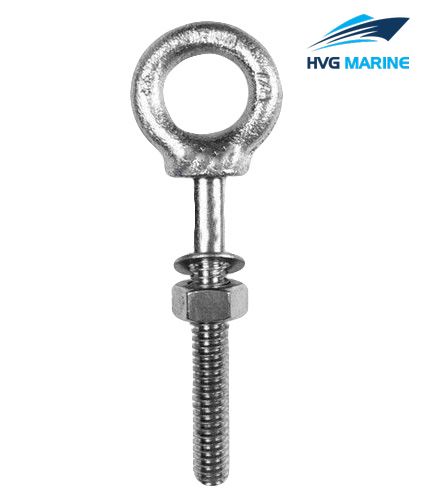

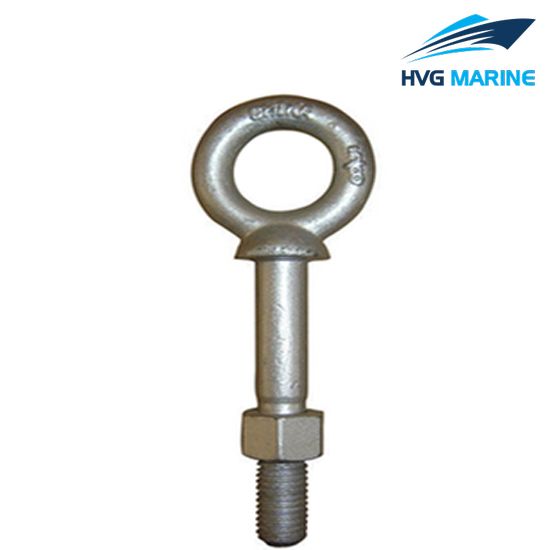

HVG RIGGING-LIFTING 0351: G-277 Shoulder Type Eye Bolts:

Our company has been specialized in producing this model for many years. All sizes are available and the price is very competitive. If you are interested in this product, please feel free to contact with us.

Details:

1. Model: G-277 Shoulder Type Eye Bolts
2. Material: Carbon steel
3. Usage: Wire rope fittings, marine hardware fittings
4. Surface Treatment: zinc plated, high polished
5. Size: Various sizes are available
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements

Technical specification:

Specification:

Size	W.L.L.	Thread length	I.D.of eye	N.W.
inch	lbs	inch	inch	lbs/100pcs
1/4×2	650	1.5	0.50	6.61
1/4×4	650	2.5	0.50	8.61
5/16×2-1/4	1200	1.5	0.60	12.50
5/16×4-1/4	1200	2.5	0.60	18.75
3/8×2-1/2	1550	1.5	0.80	19.00
3/8×4-1/2	1550	2.5	0.80	31.58
1/2×3-1/4	2600	1.5	1.00	37.50
1/2×6	2600	3.0	1.00	56.25
5/8×4	5200	2.0	1.30	75.00
5/8×6	5200	3.0	1.30	100.25
3/4×4-1/2	7200	2.0	1.50	125.00
3/4×6	7200	3.0	1.50	150.00
7/8×5	10600	2.5	1.80	225.00
1×6	13300	3.0	2.00	375.00
1×9	13300	4.0	2.00	429.00
1×12	13300	4.0	2.00	550.00
1-1/4×8	21000	4.0	2.50	650.00
1-1/4×12	21000	4.0	2.50	775.00
1-1/2×15	21000	6.0	3.00	1425.00
