HVG RIGGING-LIFTING 0346

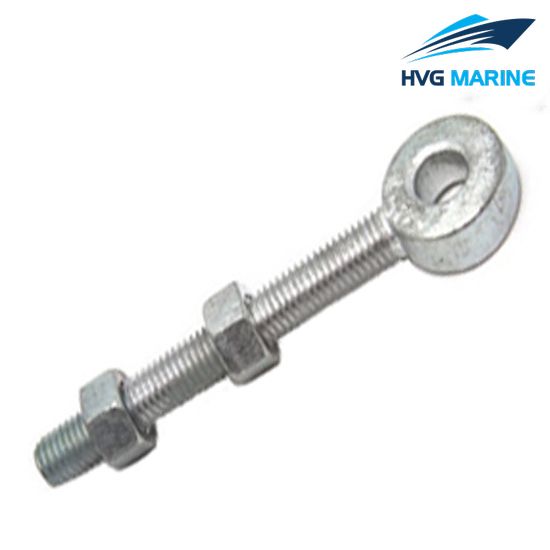

HVG RIGGING-LIFTING 0346: BZP Mild Steel Gate Eye Bolts:

BZP mild steel gate eye bolts are also known as swing bolts, palm type eye bolts, gate eye bolts, metal gate adjustable eyes and long eye bolts. We have produced this product for serveral years. All sizes are available and the price is very competitive. Welcome to contact with us.

Details:

1. Model: BZP Mild Steel Gate Eye Bolts
2. Material: Carbon steel
3. Usage: lifting
4. Surface Treatment: Hot dip galvanized
5. Size: Various sizes are available
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specification and marks can be made according to customers requirements

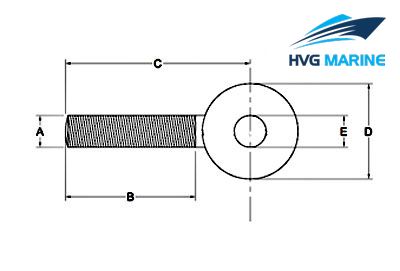

Technical specification:

Specification:

E	C	D	B	A	Product Weight
mm	mm	mm	mm	mm	kgs
13	81	30	65	M12	0.10
13	116	30	100	M12	0.13
13	166	30	150	M12	0.18
17	119	38	100	M16	0.30
17	169	38	150	M16	0.40
17	219	38	200	M16	0.45
21	125	45	100	M20	0.50
21	175	45	150	M20	0.62
21	223	45	200	M20	0.69
21	273	45	250	M20	0.89
26	175	50	150	M24	0.90
26	275	50	250	M24	1.20
26	330	50	300	M24	1.30
