HVG RIGGING-LIFTING 0348

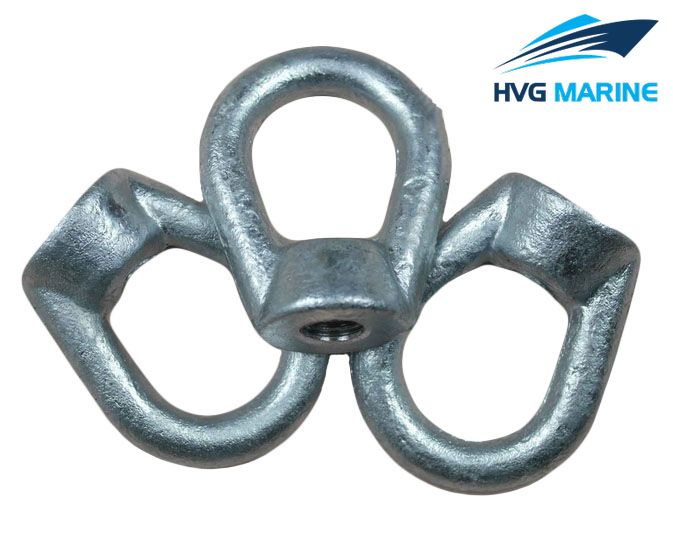

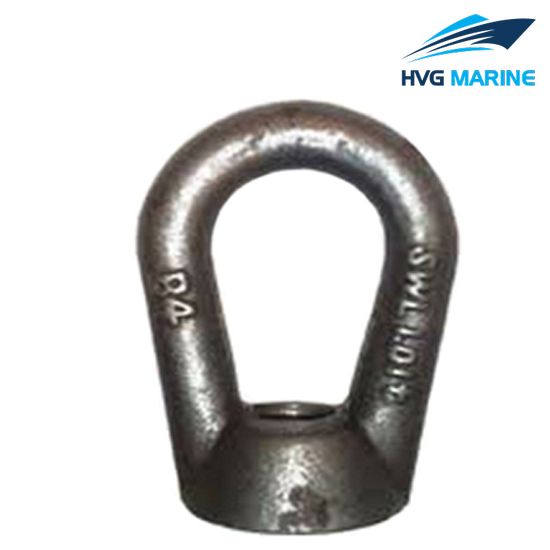

HVG RIGGING-LIFTING 0348: BS3974 Bow Nut:

BS3974 bow nut is very essential for marine equipment. Our company has produced this product for many years and we also co-operate with other excellent factories. Various sizes are available and the price is very competitive. If you are interested in this product, please feel free to get in touch with us.

Details:

1. Model: BS3974 Bow Nut
2. Material: Carbon steel, ductile iron and steel
3. Usage: lifting
4. Surface Treatment: Hot dip galvanized
5. Size: Various sizes are available
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specification and marks can be made according to customers requirements

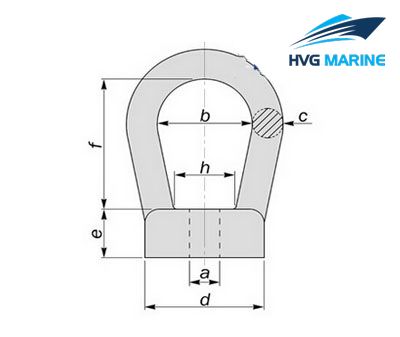

Technical specification:

Specification:

A		B	C	D	E	F	H	SWL	Weight each
mm	inches	mm	mm	mm	mm	mm	mm	kgs	kgs
M8	1/4	25	10	32	16	41	18	230	0.2
M10	3/8	25	10	32	16	41	18	360	0.2
M12	1/2	30	12	38	18	43	20	530	0.3
M16	5/8	30	12	38	18	43	20	1010	0.3
M18	3/4	40	14	45	25	63	25	1290	0.6
M20	–	40	14	45	25	63	25	1580	0.6
M22	7/8	50	17	50	28	79	30	1930	0.6
M24	1	50	17	50	28	79	30	2280	0.9
M30	1-1/8	75	26	70	38	82	46	3650	2.4
M33	1-1/4	75	26	70	38	82	46	4490	2.4
M36	1-1/2	75	26	70	38	82	46	5340	2.4
M42	1-3/4	100	30	80	45	105	59	7400	4.8
