HVG RIGGING-LIFTING 0347

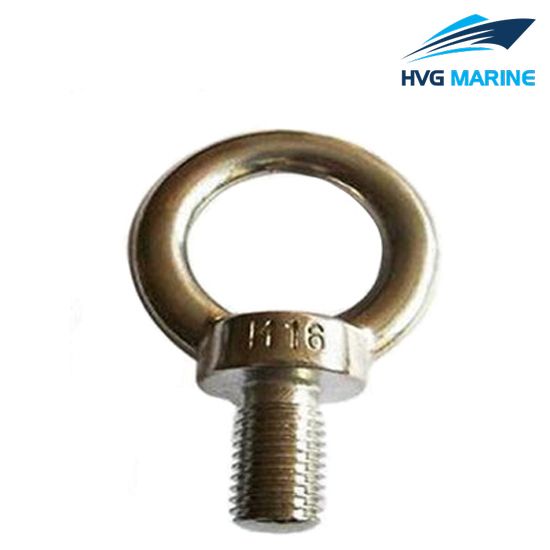

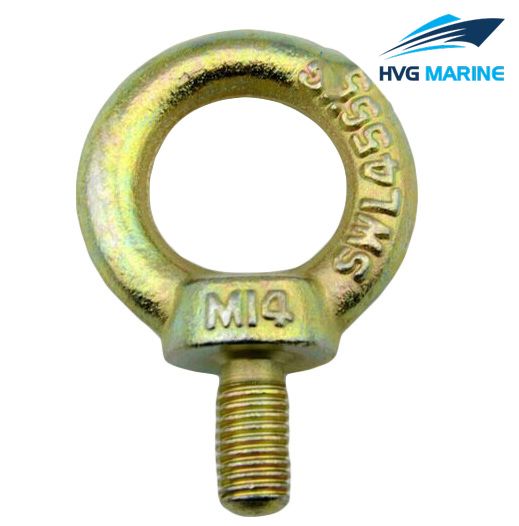

HVG RIGGING-LIFTING 0347: Rigging Marine Hardware JIS1168 Eye Bolt:

This model is one of our company’s key products. We have produced this product for many years. All sizes are available and the price is very competitive. If you are interested in our products, welcome to contact with us.

Details:

1. Model: Rigging Marine Hardware JIS1168 Eye Bolt
2. Material: Carbon Steel, stainless steel, alloy steel
3. Usage: Wire rope fittings, marine hardware fittings
4. Surface Treatment: Galvanized,hot dipped galvanized, zinc plated
5. Size: as customers’ requirement
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements

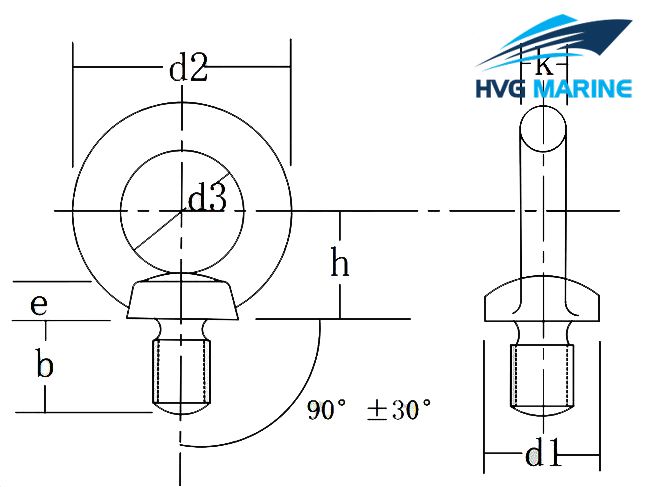

Technical specification:

Specification:

Size	A	B	C	D	H	L	E	WLL
mm	mm	mm	mm	mm	mm	mm	mm	ton
M6	23	14	4.5	6	20	11	6	0.05
M8	32.6	15	6.3	12	27.3	12	8	0.08
M10	41	20	8	16	33.5	15	10	0.15
M12	50	24	10	18	42	19	12	0.22
M14	56	26.5	11.5	21.5	46.5	21	14	0.3
M16	60	29	12.5	23.5	49	23	16	0.45
M18	67	31	14.5	25	53.5	25	18	0.5
M20	72	33	16	26	58	28	20	0.63
M22	81	35	18	28	65.5	33	22	0.8
M24	90	38	20	31	73	38	24	0.95
