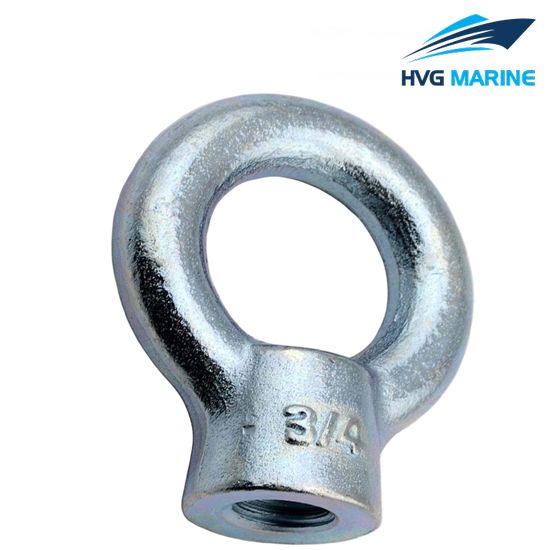

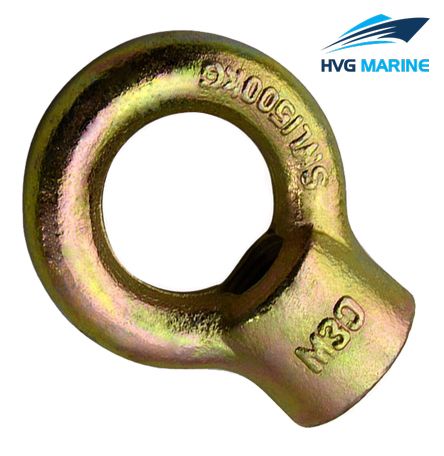

HVG RIGGING-LIFTING 0345: Standard JIS 1169 Eye Nut:

We has produced standard JIS 1169 eye nuts for many years and we also co-operate with other factories, so all of our products have high cost performance. In addition, our professional sales team will offer you the best service. Please feel free to contact with us.

Details:

1. Model: Standard JIS 1169 Eye Nut
2. Material: Carbon Steel, stainless steel, alloy steel
3. Usage: Wire rope fittings, marine hardware fittings
4. Surface Treatment: Galvanized,hot dipped galvanized
5. Size: as customers’ requirement
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements

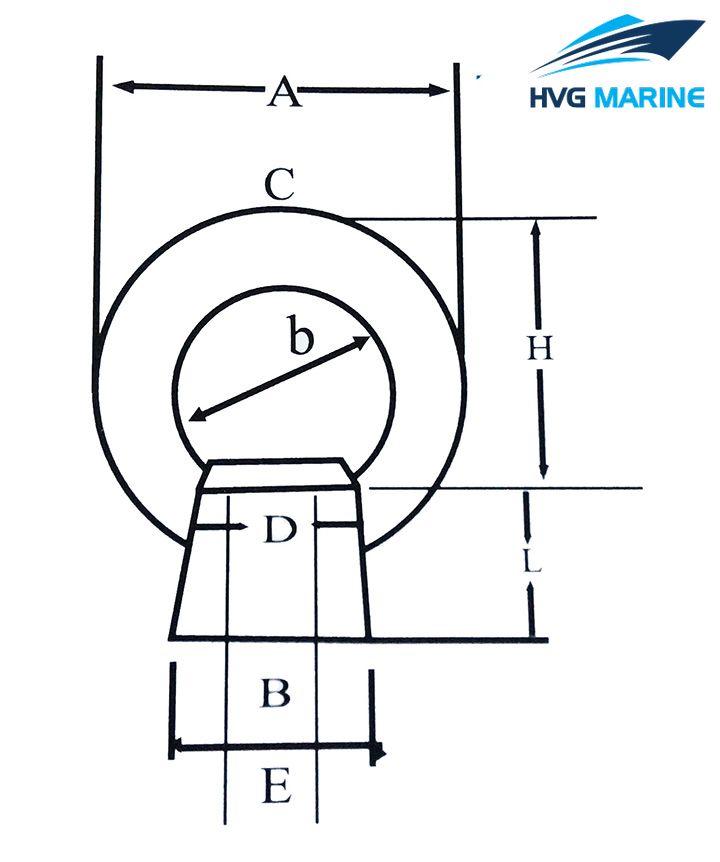

Technical specification:

Specification

Size	A	B	C	D	H	L	E	WLL
mm	mm	mm	mm	mm	mm	mm	mm	ton
M6	23	14	4.5	6	20	11	6	0.05
M8	32.6	15	6.3	12	27.3	12	8	0.08
M10	41	20	8	16	33.5	15	10	0.15
M12	50	24	10	18	42	19	12	0.22
M14	56	26.5	11.5	21.5	46.5	21	14	0.3
M16	60	29	12.5	23.5	49	23	16	0.45
M18	67	31	14.5	25	53.5	25	18	0.5
M20	72	33	16	26	58	28	20	0.63
M22	81	35	18	28	65.5	33	22	0.8
M24	90	38	20	31	73	38	24	0.95
