HVG RIGGING-LIFTING 0344

HVG RIGGING-LIFTING 0344: DIN 580 Eye Bolt:

DIN 580 eye bolts are essential for rigging systems. Our company has produced this model for several years and all of them have required relative society certifications. Welcome to get in touch with us.

Details:

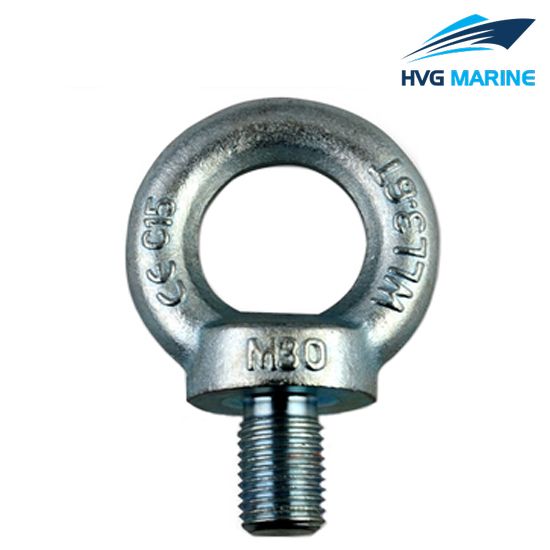

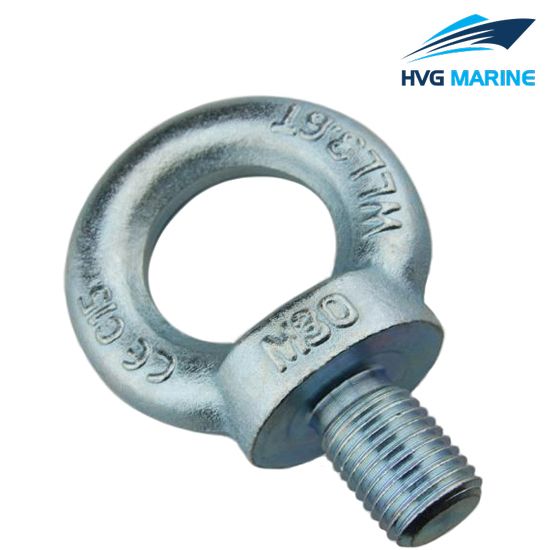

1. Model: DIN 580 Eye Bolt
2. Material: Carbon Steel, stainless steel, alloy steel
3. Usage: Wire rope fittings, marine hardware fittings
4. Surface Treatment: Galvanized,hot dipped galvanized
5. Size: From M6 to M52
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements

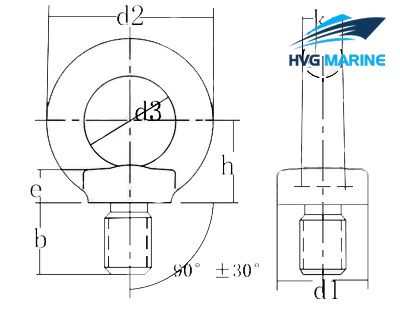

Technical specification:

Specification:

Size(d)	WLL(t)	WLL(t)	Dimensions							Weight(kg)
Size(d)	WLL(t)	WLL(t)	d1(mm)	d2(mm)	d3(mm)	b(mm)	e(mm)	h(mm)	k(mm)	Weight(kg)
M6	0.07	0.05	17	28	16	13	6	17	6	5
M8	0.14	0.095	20	36	20	15	6	18	8	6
M10	0.23	0.17	25	45	25	18	8	22	10	11
M12	0.34	0.24	30	54	30	22	10	26	12	18
M14	0.49	0.34	35	63	35	28	12	30	14	28.5
M16	0.7	0.5	35	63	35	28	12	30	14	28
M20	1.2	0.83	40	72	40	30	12	35	16	45
M22	1.5	1.05	45	81	45	35	14	40	18	67
M24	1.8	1.27	50	90	50	38	16	45	20	87
M27	2.5	1.65	50	90	50	38	18	45	20	88
M30	3.6	2.6	65	108	60	45	18	55	24	166
M33	4.3	3.2	65	108	60	45	22	55	24	172
M36	5.1	3.7	75	126	70	55	22	65	28	265
M39	6.1	4.3	75	126	70	55	26	65	28	280
M42	7	5	85	144	80	65	30	75	32	403
M45	8	5.5	85	144	80	65	30	75	32	425
M48	8.6	6.1	100	166	90	70	35	85	38	638
M52	9.9	7.3	100	166	90	70	35	85	38	660
