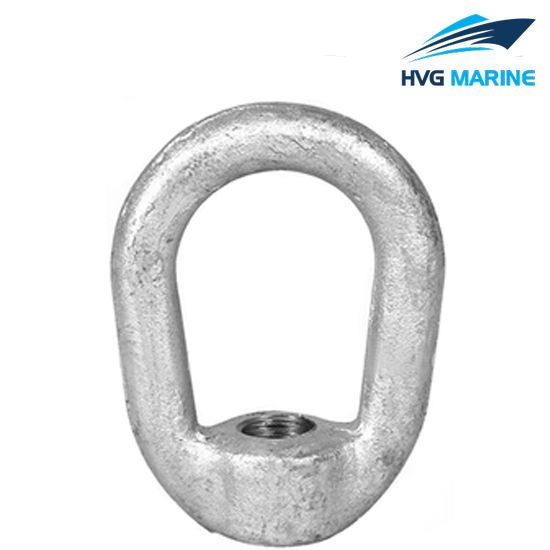

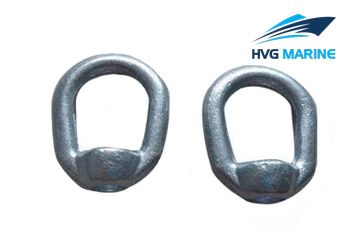

    HVG RIGGING-LIFTING 0341: Hot-dipped Galvanized Forged Eye Nut G400:

    G400 eye nuts are typically used as permanent attachments on devices such as gear boxes, lifting parts, etc. As one multi-purpose component, eye nut makes equipment more easy to transport. Our company is a professional G400 eye nut manufacturer, supplier and exporter. All sizes are available. Please feel free to contact with us.

    Details:

    1. Model: Eye Nut G400
    2. Material: Forged steel
    3. Usage: lifting
    4. Surface Treatment: Hot dip galvanized
    5. Size: Various sizes are available
    6. Packing: Gunny bag or carton and pallet / by customer requirments
    7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
    8. Certifications: ISO9001, CE, SGS,etc.
    9. Notes: Special specification and marks can be made according to customers requirements

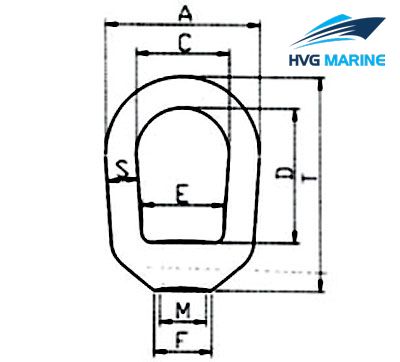

    Technical specification:

    • Specification:
    Std.tap size Max.tap size Weight WLL
    in in lbs/pc lbs
    1/4 3/8 0.09 520
    3/8 7/16 0.18 1250
    1/2 1/2 0.28 2250
    5/8 3/4 0.58 3600
    3/4 7/8 1 5200
    7/8 1 1.7 7200
    1 1-1/4 2.75 10000
    1-1/4 1-1/2 3.85 15500
    1-3/8 1-1/2 5 18500
    1-1/2 1-3/4 6.7 22500
    2 2-3/4 18.7 40000
