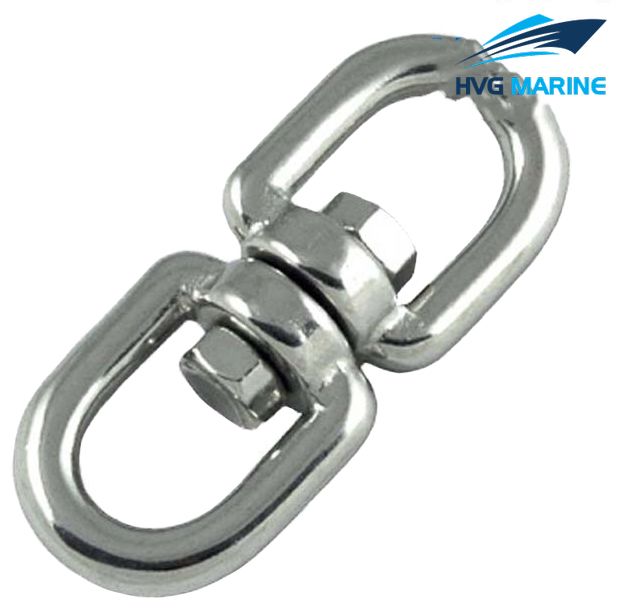

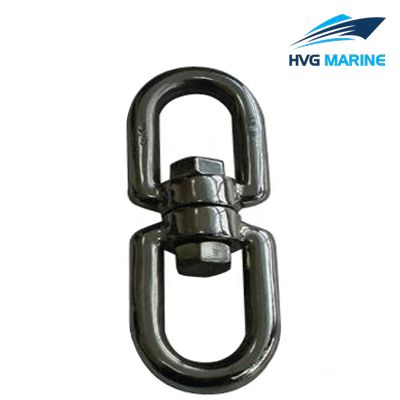

HVG RIGGING-LIFTING 0300: European Type Swivel Eye and Eye

European type swivel with eye and eye is made by high polished stainless steel or carbon steel with hot dip galvanizing on the surface. All the procedures from raw material purchase to delivery will be strictly examed. The advanced technical design crafts and equipments are completely adopted. The essential working procedures are controlled completely by the computers.

Product details:

1. Item: European type swivel eye and eye
2. Type: European type
3. Material: stainless steel, carbon steel
4. Technology: drop forged
5. Surface: hot dip galvanized, zinc plated, high polished
6. WLL:113kg-3250kg
7. Breaking load: 4 times of working load
8. Usage: lifting, rigging
9. Size: 5/32”-1”
10.Special specifications and marks can be made according to customers requirement

Technical specification:

Specification:

Item	A(mm)	B(mm)	L(mm)	WLL(kg)
HVG-01	4	11	50	112.5
HVG-02	5	13	59	162.5
HVG-03	6	14.7	66	300
HVG-04	8	20.5	94	475
HVG-05	9	22	102	750
HVG-06	10	24	118	875
HVG-07	13	32	152	1250
HVG-08	16	40	188	2125
HVG-09	19	41	229	2500
HS-10	22	47	251	2875
HS-11	25	62	291	3250
