HVG RIGGING-LIFTING 0297: Marine Hardware Regular Swivels G402

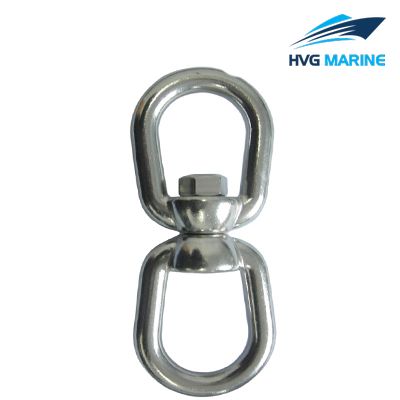

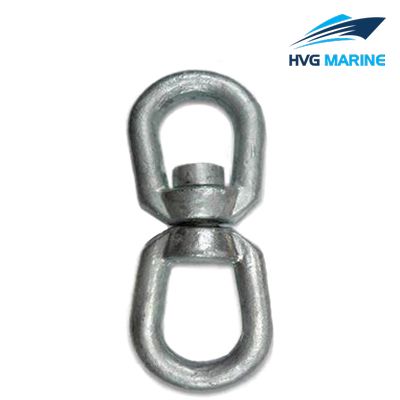

Marine hardware regular swivel G402 is one kind of most common swivel, which is widely used in industry. It is made by high polished stainless steel or carbon steel with hot dip galvanizing on the surface. Because of its solid structure, it can be widely used in mine, large factory, shipping, metallurgy, bridge constraction and so on.

Product details:

1. Item: marine hardware regular swivel G402
2. Type: regular type
3. Material: stainless steel, carbon steel
4. Technology: drop forged
5. Surface: hot dip galvanized, zinc plated, high polished
6. WLL: 850lbs-45200lbs
7. Breaking load: 4 times of working load
8. Usage: lifting, rigging
9. Size:1/4”-1 1/2”
10. Special specifications and marks can be made according to customers requirement

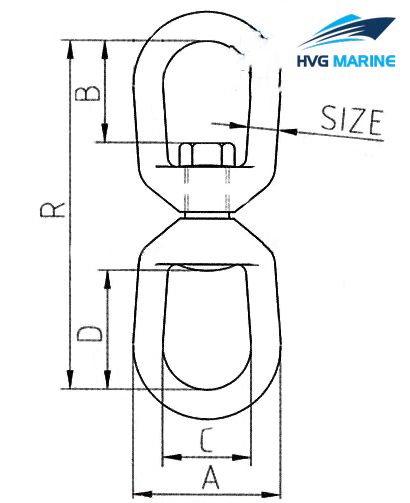

Technical specification:

Specification:

Size	W.L.L.	A	B	C	D	R	Weight
in	lbs	in	in	in	in	in	kg
1/4′	850	0.69	0.69	0.75	0.75	2.94	0.1
5/16′	1250	0.81	0.81	1	1.25	3.56	0.18
3/8′	2500	1	0.94	1.25	1.5	4.31	0.34
1/2′	3600	1.31	1.31	1.5	2	5.44	0.6
5/8′	5200	1.5	1.56	1.75	2.35	6.5	1.12
3/4′	7200	1.88	1.75	2	2.63	7.19	1.82
7/8′	10000	2.13	2.06	2.25	3.06	8.38	2.84
1′	12500	2.38	2.31	2.5	3.5	9.63	4.06
1 1/4′	18000	3	2.69	3.13	3.69	11.13	7.43
1 1/2′	45200	3.75	3.88	4	3.88	16.69	20.77
