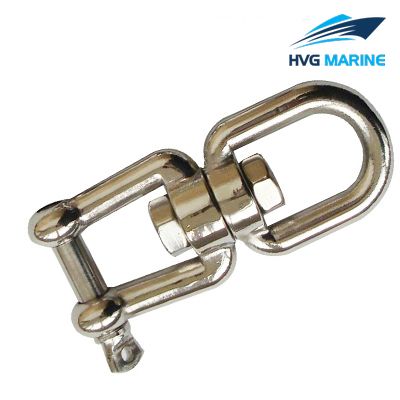

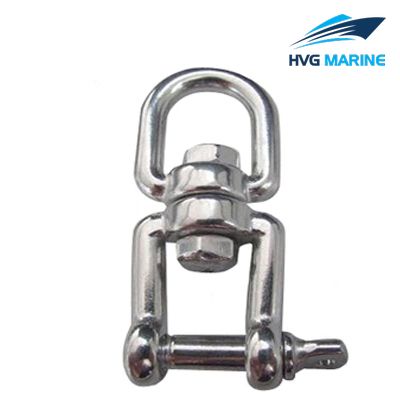

    HVG RIGGING-LIFTING 0299: European Type Eye and Jaw Swivel

    European type swivel with eye and jaw is made by high polished stainless steel or carbon steel with hot dip galvanizing on the surface. The most outstanding advantage of it is the solid and safety structure. And all the samples chosen from the finished products have past the international standard. So you can absolutely believe in the quality of products.

    Product details:

    • 1. Item: European type swivel eye and jaw
    • 2. Type: European type
    • 3. Material: stainless steel, carbon steel
    • 4. Technology: drop forged
    • 5. Surface: hot dip galvanized, zinc plated, high polished
    • 6. WLL:300kg-2500kg
    • 7. Breaking load: 4 times of working load
    • 8. Usage: lifting, rigging
    • 9. Size: 6mm-19mm
    • 10.Special specifications and marks can be made according to customers requirement

    Technical specification:

    • Specification:

    Size

    A

    B

    L

    WLL

    mm

    mm

    mm

    mm

    kg

    6

    6

    12

    66

    300

    8

    8

    16

    94

    475

    10

    10

    20

    118

    875

    13

    13

    26

    152

    1250

    16

    16

    32

    188

    2125

    19

    19

    38

    229

    2500
