HVG RIGGING-LIFTING 0296

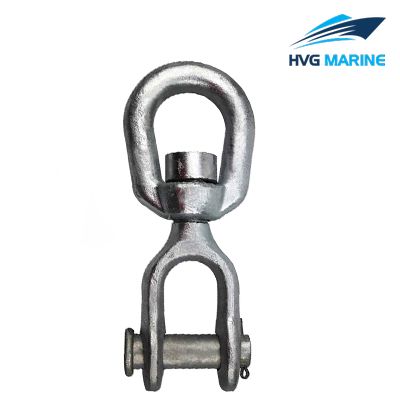

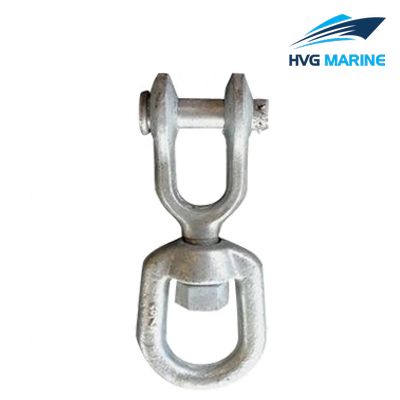

HVG RIGGING-LIFTING 0296: US Type Jaw End Swivel G403

US type jaw end swivel G403 is made by high polished stainless steel or carbon steel with zinc plated on the surface. Every procedure are controlled strictly to make sure the quality of swivels before delivery. We never allow bad goods flow to the maket and ensure to supply our custumers the high quality and security products.

Product details:

1. Item: US type jaw end swivel G403
2. Type: US type
3. Material: stainless steel, carbon steel
4. Technology: drop forged
5. Surface: high polished, zinc plated
6. WLL: 850lbs-12500lbs
7. Breaking load: 4 times of working load
8. Usage: lifting, rigging
9. Size: 1/4inch-1inch
10. Special specifications and marks can be made according to customers requirement

Technical specification:

Specification:

Size	B	C	K	M	N	R	WLL	Weight
in	in	in	in	in	in	in	lbs	lbs
1/4	0.69	0.75	0.47	0.31	0.88	2.63	850	0.21
5/16	0.81	1	0.5	0.38	0.88	2.94	1250	0.34
3/8	0.94	1.25	0.63	0.5	1.06	3.63	2250	0.66
1/2	1.31	1.5	0.75	0.63	1.31	4.5	3600	1.34
5/8	1.56	1.75	0.94	0.75	1.5	5.31	5200	2.48
3/4	1.75	2	1.13	0.88	1.75	6.06	7200	3.88
7/8	2.06	2.25	1.19	1	2.06	7	10000	5.87
1	2.31	2.5	1.75	1.13	2.81	8.56	12500	9.84
1 1/4	2.69	3.13	2.06	1.63	2.81	9.75	18000	15.75
1 1/2	3.88	4	2.88	2.25	4.44	14.25	45200	54.75
