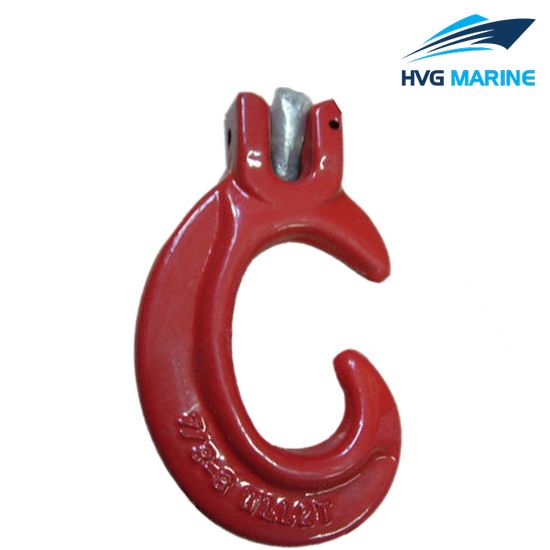

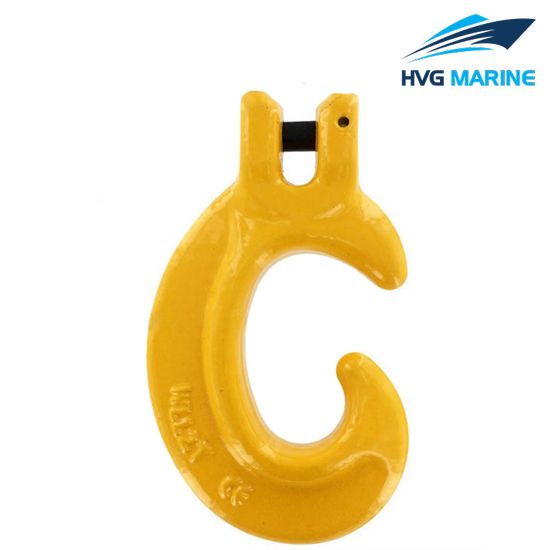

    HVG RIGGING-LIFTING 0291: G80 Special Clevis C Hook

    Clevis C hooks are simple to assemble with chains without any intermediate coupling-links. They can used with omega links, connecting links and other lifting components. Besides, they can serve in many circumstances. And Special specification and marks can be made according to customers requirement.

    Product details:

    • 1. Item: G80 special clevis C hook
    • 2. Grade: 80
    • 3. Material: high alloy steel
    • 4. Technology: drop forged
    • 5. Surface: hot dip galvanized, zinc plated or self color
    • 6. WLL: 2T-8T
    • 7. Breaking load: 4 times of working load
    • 8. Usage: lifting, rigging
    • 9. Size: 7/8mm-16mm
    • 10.Special specifications and marks can be made according to customers requiremen

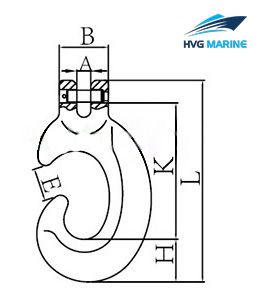

    Technical specification:

    • Specification

    Chain Size(mm)

    Weight(KG)

    WLL(T)

    B.L(T)

    A(mm)

    B(mm)

    E(mm)

    L(mm)

    7/8

    0.57

    2

    8

    9.5

    35

    20

    136

    10

    1.4

    3.15

    12.6

    13

    46

    29.5

    189

    13

    3

    5.3

    21.1

    16.5

    59

    39.5

    246

    16

    5.4

    8

    32

    18.5

    72

    46.5

    298
