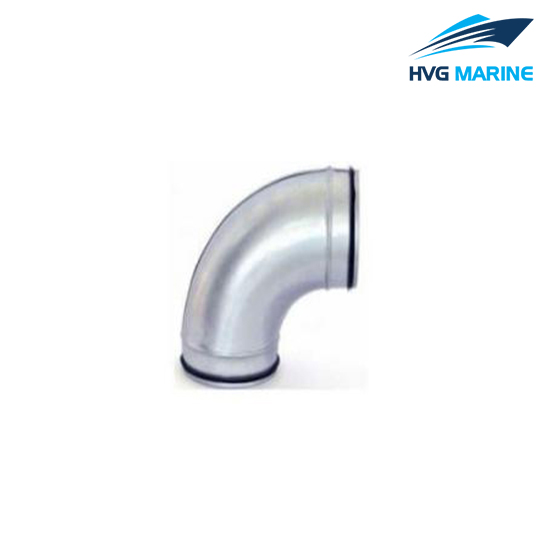

HVG MARINE VENTILATION EQUIPMENT 0022: 90° Non-heat Insulation Elbow
Drawing
HVG MARINE VENTILATION EQUIPMENT 0026
Technical specification:
- Main Specification
|
Specification |
DN |
r |
L |
|
B80/90° |
80 |
100 |
40 |
|
B100/90° |
100 |
1D |
40 |
|
B125/90° |
125 |
1D |
40 |
|
B150/90° |
150 |
1D |
40 |
|
B160/90° |
160 |
1D |
40 |
|
B175/90° |
175 |
1D |
40 |
|
B200/90° |
200 |
1D |
40 |
|
B300/90° |
300 |
1D |
40 |
|
B400/90° |
400 |
1D |
50 |
|
B500/90° |
500 |
1D |
50 |
