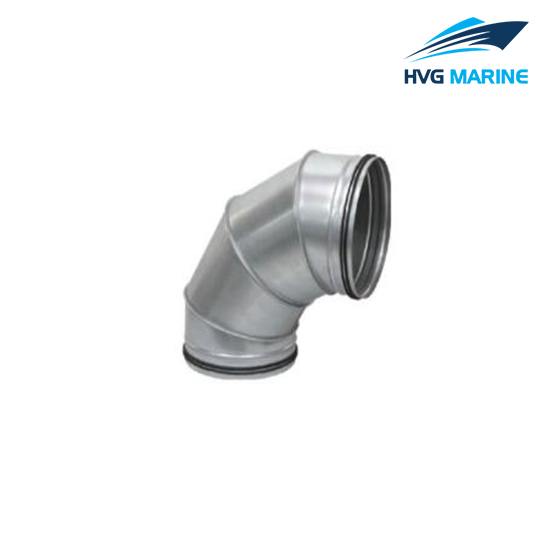

    HVG MARINE VENTILATION EQUIPMENT 0022: 90° Pre-heat Insulation Elbow

    Drawing

    Technical specification:

    • Main Specification

    Specification

    DN

    r

    L

    PB80/90°

    80

    100

    40

    PB100/90°

    100

    1D

    40

    PB125/90°

    125

    1D

    40

    PB150/90°

    150

    1D

    40

    PB160/90°

    160

    1D

    40

    PB175/90°

    175

    1D

    40

    PB200/90°

    200

    1D

    40

    PB300/90°

    300

    1D

    40

    PB400/90°

    400

    1D

    50

    PB500/90°

    500

    1D

    50

    NoteParticular dimension type is supplied according to customers.
