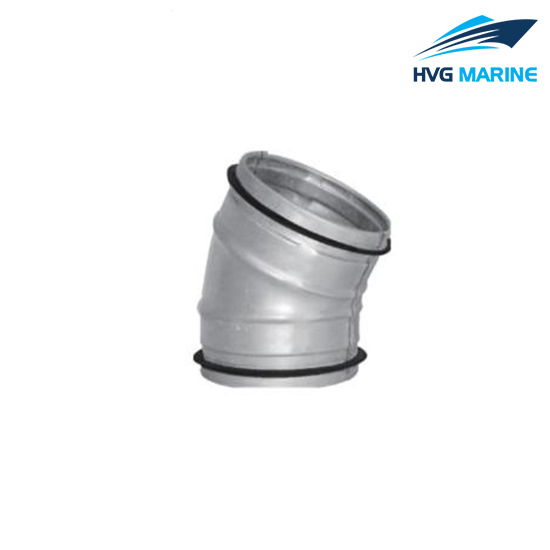

HVG MARINE VENTILATION EQUIPMENT 0022: 30°Non-heat Insulation Elbow

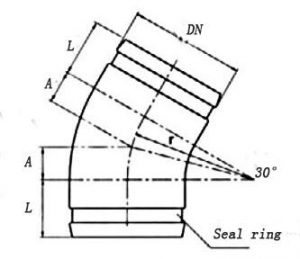

Drawing
HVG MARINE VENTILATION EQUIPMENT 0022
Technical specification:
- Main Specification
|
Specification |
DN |
r |
L |
|
B80/30° |
80 |
100 |
40 |
|
B100/30° |
100 |
1D |
40 |
|
B125/30° |
125 |
1D |
40 |
|
B150/30° |
150 |
1D |
40 |
|
B160/30° |
160 |
1D |
40 |
|
B175/30° |
175 |
1D |
40 |
|
B200/30° |
200 |
1D |
40 |
|
B300/30° |
300 |
1D |
40 |
|
B400/30° |
400 |
1D |
50 |
|
B500/30° |
500 |
1D |
50 |
