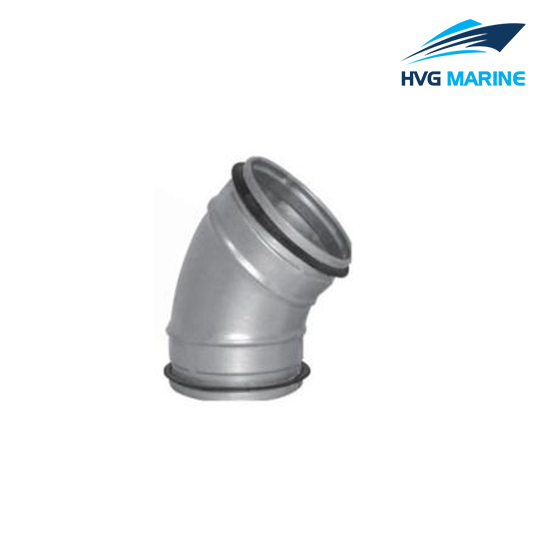

    HVG MARINE VENTILATION EQUIPMENT 0022: 45° Pre-heat Insulation Elbow

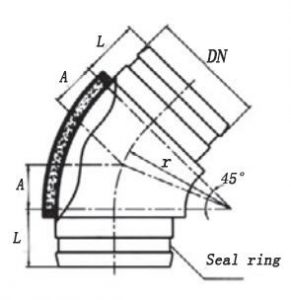

    Drawing

    Technical specification:

    • Main Specification

    Specification

    DN

    r

    L

    PB80/45°

    80

    100

    40

    PB100/45°

    100

    1D

    40

    PB125/45°

    125

    1D

    40

    PB150/45°

    150

    1D

    40

    PB160/45°

    160

    1D

    40

    PB175/45°

    175

    1D

    40

    PB200/45°

    200

    1D

    40

    PB300/45°

    300

    1D

    40

    PB400/45°

    400

    1D

    50

    PB500/45°

    500

    1D

    50
