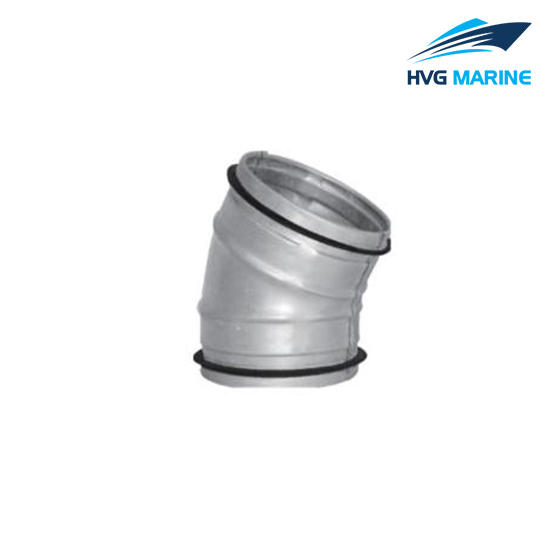

HVG MARINE VENTILATION EQUIPMENT 0020: 30°Pre-heat Insulation Bend
Drawing
HVG MARINE VENTILATION EQUIPMENT 0020
Technical specification:
- Main Specification
|
Specification |
DN |
r |
L |
|
PB80/30° |
80 |
100 |
40 |
|
PB100/30° |
100 |
1D |
40 |
|
PB125/30° |
125 |
1D |
40 |
|
PB150/30° |
150 |
1D |
40 |
|
PB160/30° |
160 |
1D |
40 |
|
PB175/30° |
175 |
1D |
40 |
|
PB200/30° |
200 |
1D |
40 |
|
PB300/30° |
300 |
1D |
40 |
|
PB400/30° |
400 |
1D |
50 |
|
PB500/30° |
500 |
1D |
50 |
