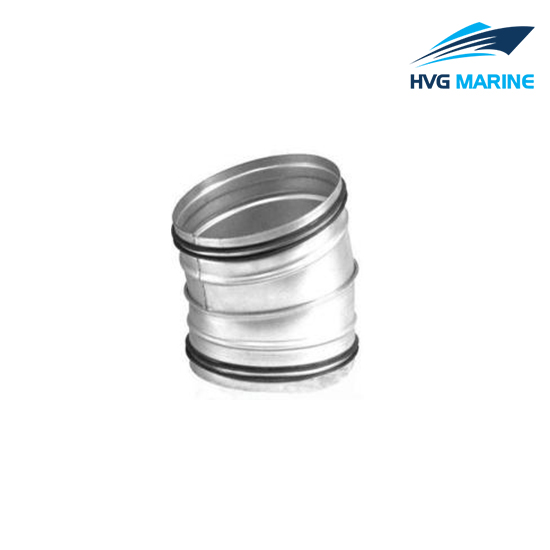

HVG MARINE VENTILATION EQUIPMENT 0019: 15°Non-heat Insulation Bend
Drawing
HVG MARINE VENTILATION EQUIPMENT 0019
Technical specification:
- Main Specification
|
Specification |
DN |
r |
L |
|
B80/15° |
80 |
100 |
40 |
|
B100/15° |
100 |
1D |
40 |
|
B125/15° |
125 |
1D |
40 |
|
B150/15° |
150 |
1D |
40 |
|
B160/15° |
160 |
1D |
40 |
|
B175/15° |
175 |
1D |
40 |
|
B200/15° |
200 |
1D |
40 |
|
B300/15° |
300 |
1D |
40 |
|
B400/15° |
400 |
1D |
50 |
|
B500/15° |
500 |
1D |
50 |
