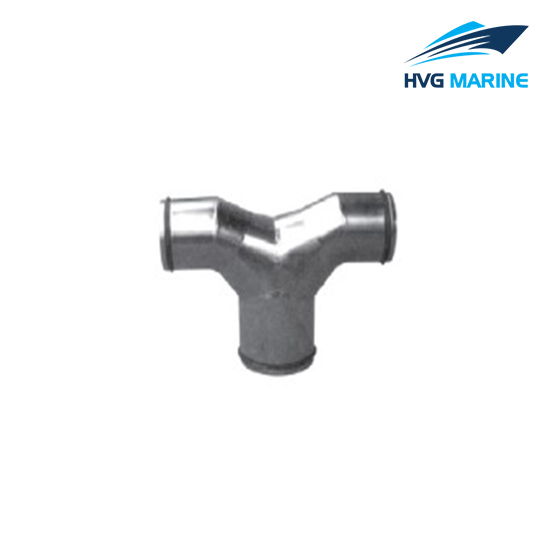

HVG MARINE VENTILATION EQUIPMENT 0016: Pre-heat Insulation Tee
Drawing
HVG MARINE VENTILATION EQUIPMENT 0016
Technical specification:
- Main Specification
|
Specification |
A |
D1 |
D2 |
B |
Wgt.≈kg/piece |
|
PT80/80 |
150 |
80 |
80 |
70 |
1.26 |
|
PT100/80 |
150 |
100 |
80 |
80 |
1.32 |
|
PT100/100 |
165 |
100 |
100 |
80 |
1.44 |
|
PT125/80 |
150 |
125 |
80 |
90 |
1.48 |
|
PT125/100 |
165 |
125 |
100 |
90 |
1.60 |
|
PT125/125 |
200 |
125 |
125 |
90 |
1.84 |
|
PT150/80 |
150 |
150 |
80 |
105 |
1.80 |
|
PT150/100 |
165 |
150 |
100 |
105 |
1.86 |
|
PT150/125 |
200 |
150 |
125 |
105 |
1.98 |
|
PT150/150 |
220 |
150 |
150 |
105 |
2.05 |
|
PT160/80 |
150 |
160 |
80 |
109 |
1.83 |
|
PT160/100 |
165 |
160 |
100 |
109 |
1.84 |
|
PT160/125 |
200 |
160 |
125 |
109 |
1.98 |
|
PT160/160 |
250 |
160 |
160 |
109 |
2.20 |
|
PT175/80 |
150 |
175 |
80 |
115 |
1.98 |
|
PT175/100 |
165 |
175 |
100 |
115 |
2.04 |
|
PT175/125 |
200 |
175 |
125 |
115 |
2.35 |
|
PT175/150 |
250 |
175 |
150 |
115 |
2.54 |
|
PT175/175 |
250 |
175 |
175 |
115 |
2.60 |
|
PT200/80 |
150 |
200 |
80 |
140 |
2.04 |
|
PT200/100 |
165 |
200 |
100 |
140 |
2.6 |
|
PT200/125 |
200 |
200 |
125 |
140 |
2.48 |
|
PT200/150 |
250 |
200 |
150 |
140 |
2.68 |
|
PT200/160 |
250 |
200 |
160 |
140 |
3.03 |
|
PT200175 |
250 |
200 |
175 |
140 |
3.28 |
|
PT200/200 |
300 |
200 |
200 |
140 |
3.57 |
|
PT250/80 |
180 |
200 |
20 |
165 |
1.81 |
|
PT250/100 |
200 |
250 |
100 |
165 |
2.13 |
|
PT250/125 |
225 |
250 |
125 |
165 |
2.36 |
|
PT250/160 |
250 |
250 |
160 |
165 |
2.81 |
|
PT250/200 |
300 |
250 |
200 |
165 |
3.28 |
|
PT250/250 |
350 |
250 |
250 |
165 |
3.97 |
|
PT300/100 |
200 |
250 |
100 |
200 |
2.50 |
|
PT300/125 |
225 |
300 |
125 |
200 |
3.00 |
|
PT300/160 |
250 |
300 |
160 |
200 |
3.50 |
|
PT300/200 |
300 |
300 |
200 |
200 |
4.10 |
|
PT300/250 |
350 |
300 |
250 |
200 |
4.76 |
|
PT300/300 |
400 |
300 |
300 |
200 |
5.81 |
