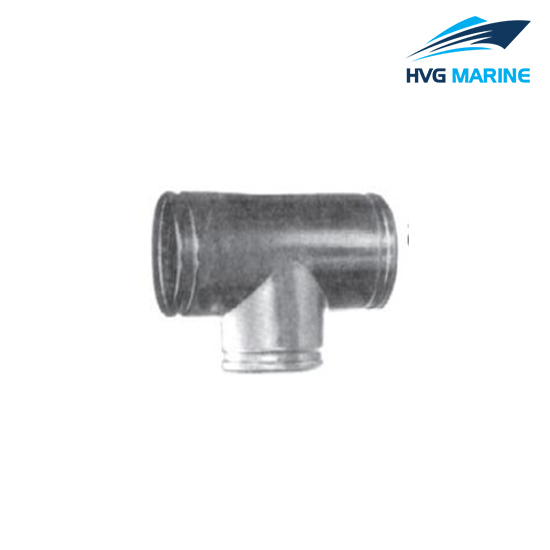

HVG MARINE VENTILATION EQUIPMENT 0017: Non-heat Insulation T-piece
Drawing
HVG MARINE VENTILATION EQUIPMENT 0017
Technical specification:
- Main Specification
|
Specification |
A |
D1 |
D2 |
B |
Wgt.≈kg/piece |
|
T80/80 |
150 |
80 |
80 |
70 |
0.52 |
|
T100/80 |
150 |
100 |
80 |
80 |
0.63 |
|
T100/100 |
165 |
100 |
100 |
80 |
0.64 |
|
T125/80 |
150 |
125 |
80 |
90 |
0.69 |
|
T125/100 |
165 |
125 |
100 |
90 |
0.75 |
|
T125/125 |
200 |
125 |
125 |
90 |
0.81 |
|
T150/80 |
150 |
150 |
80 |
105 |
0.84 |
|
T150/100 |
165 |
150 |
100 |
105 |
0.90 |
|
T150/125 |
200 |
150 |
125 |
105 |
0.97 |
|
T150/150 |
220 |
150 |
150 |
105 |
1.40 |
|
T160/80 |
150 |
160 |
80 |
109 |
0.92 |
|
T160/100 |
165 |
160 |
100 |
109 |
1.06 |
|
T160/125 |
200 |
160 |
125 |
109 |
1.37 |
|
T160/160 |
250 |
160 |
160 |
109 |
1.49 |
|
T175/80 |
150 |
175 |
80 |
115 |
0.96 |
|
T175/100 |
165 |
175 |
100 |
115 |
1.08 |
|
T175/125 |
200 |
175 |
125 |
115 |
1.55 |
|
T175/150 |
250 |
175 |
150 |
115 |
1.65 |
|
T175/175 |
250 |
175 |
175 |
115 |
1.78 |
|
T200/80 |
150 |
200 |
80 |
140 |
1.05 |
|
T200/100 |
165 |
200 |
100 |
140 |
1.17 |
|
T200/125 |
200 |
200 |
125 |
140 |
1.23 |
|
T200/150 |
250 |
200 |
150 |
140 |
1.45 |
|
T200/160 |
250 |
200 |
160 |
140 |
1.51 |
|
T200175 |
250 |
200 |
175 |
140 |
2.04 |
|
T200/200 |
300 |
200 |
200 |
140 |
2.15 |
|
T250/80 |
180 |
200 |
20 |
165 |
1.31 |
|
T250/100 |
200 |
250 |
100 |
165 |
1.46 |
|
T250/125 |
225 |
250 |
125 |
165 |
1.53 |
|
T250/160 |
250 |
250 |
160 |
165 |
1.88 |
|
T250/200 |
300 |
250 |
200 |
165 |
2.55 |
|
T250/250 |
350 |
250 |
250 |
165 |
2.68 |
|
T300/100 |
200 |
250 |
100 |
200 |
1.75 |
|
T300/125 |
225 |
300 |
125 |
200 |
1.83 |
|
T300/160 |
250 |
300 |
160 |
200 |
2.26 |
|
T300/200 |
300 |
300 |
200 |
200 |
3.06 |
|
T300/250 |
350 |
300 |
250 |
200 |
3.21 |
|
T300/300 |
400 |
300 |
300 |
200 |
3.68 |
