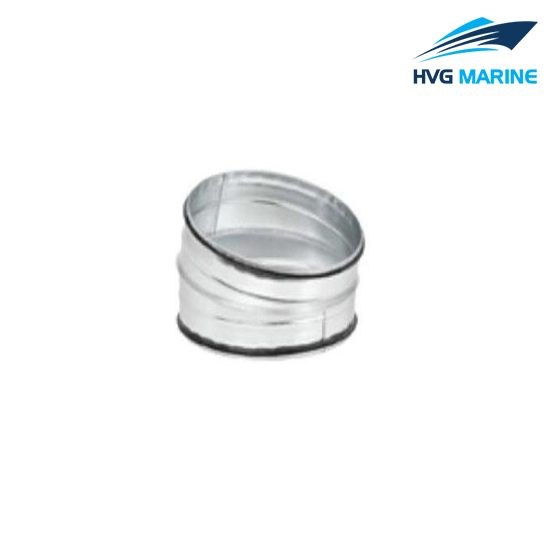

HVG MARINE VENTILATION EQUIPMENT 0018: 15° Pre-heat Insulation Bend
Drawing
HVG MARINE VENTILATION EQUIPMENT 0018
Technical specification:
- Main Specification
|
Specification |
DN |
r |
L |
|
PB80/15° |
80 |
100 |
40 |
|
PB100/15° |
100 |
1D |
40 |
|
PB125/15° |
125 |
1D |
40 |
|
PB150/15° |
150 |
1D |
40 |
|
PB160/15° |
160 |
1D |
40 |
|
PB175/15° |
175 |
1D |
40 |
|
PB200/15° |
200 |
1D |
40 |
|
PB300/15° |
300 |
1D |
40 |
|
PB400/15° |
400 |
1D |
50 |
|
PB500/15° |
500 |
1D |
50 |
