HVG MARINE PROPULSION EQUIPMENT 0157

HVG MARINE PROPULSION EQUIPMENT 0157: Marine Integral Type Rubber Bearing CB*769-2008

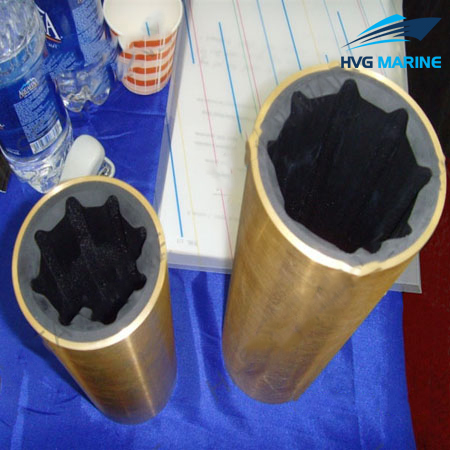

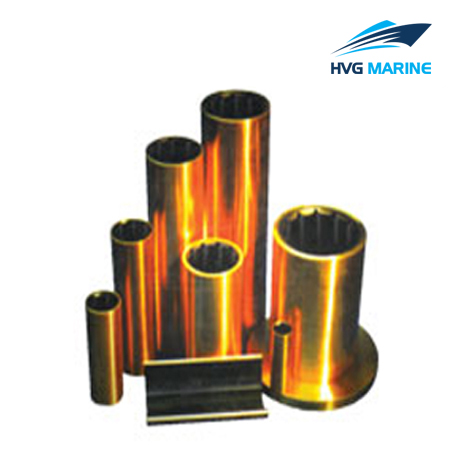

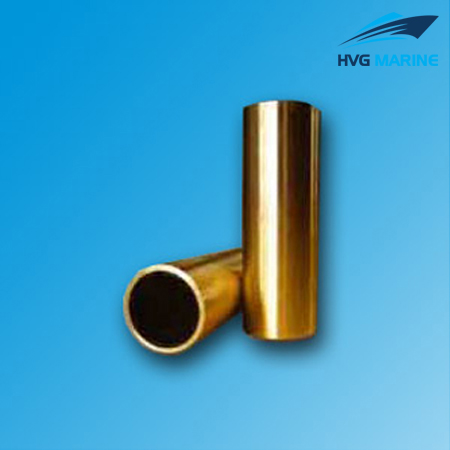

This marine integral-type rubber bearing is designed in accord with the CB*769-2008 standard. It is suggested to be used when the lubricating medium of stern tube is water and the water lubrication pressures is mo more than 490KPa(cooling water temperature is less than 55℃). It not only can save resource and reduce loss but also can be maintained without going into a dock. This integral structure may be used within Φ200 and the embedding structure would be used if excess Φ200. We can design our products according to customer’s requirements.

Features:

1. Material: rubber
2. Standard: CB*769-2008
3. Application: be used when the lubricating medium of stern tube is water.
4. OEM service available

Technical specification:

Drawing and specification:

D (mm)	D₁(mm)	L (mm)		Wight (kg)
D (mm)	D₁(mm)	Normal Type	Extension Type	Normal Type	Extension Type
40	64	120	140	1.1	1.2
45	68	135	155	1.1	1.3
50	74	150	170	1.5	1.7
55	78	150	170	1.4	1.5
60	84	165	210	1.8	2.2
65	88	180	230	1.9	2.3
70	96	190	250	2.8	3.6
75	102	210	270	3.3	4.2
80	108	220	290	3.7	4.9
85	114	240	300	4.6	5.7
90	120	250	320	5.4	6.9
95	125	260	340	5.9	7.5
100	130	280	350	6.6	8.2
105	137	290	370	7.7	9.8
110	144	300	385	9.0	11.5
120	156	330	420	12.0	15.3
125	163	163	440	14.3	18.5
130	170	170	450	17.2	21.5
140	182	182	480	19.7	24.9
150	194	194	520	24.6	31.2
160	206	206	550	32.3	37.8
170	218	218	580	36.0	45.4
180	228	228	620	38.6	47.9
190	238	238	650	42.1	52.6
200	250	250	680	50.2	62.1
