HVG MARINE PROPULSION EQUIPMENT 0150

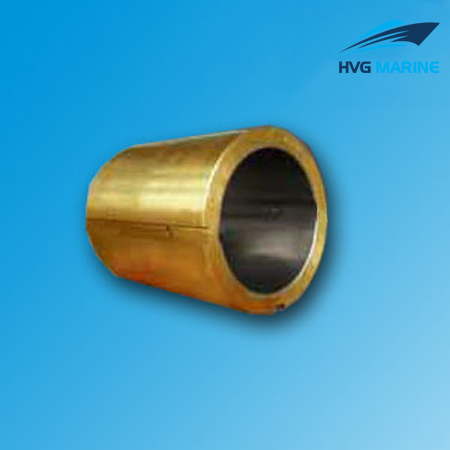

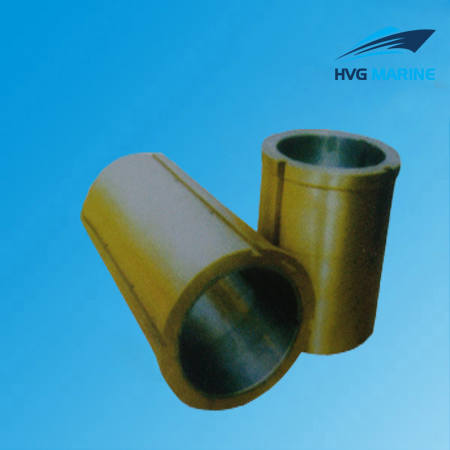

HVG MARINE PROPULSION EQUIPMENT 0150: Stern Tube White Metal Bearing

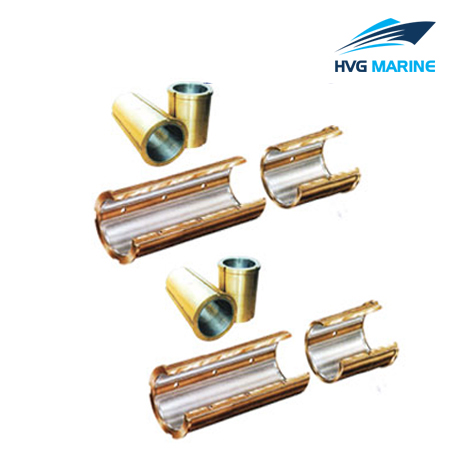

This product is vessel stern tube bearing made of white metal. This bearing is suitable for vessels of different sizes whose lubricating medium is oil. This bearing consists of two parts: stern tube front bearing and stern tube rear bearing. We can supply two types of this stern tube bearing: type A and type B. If you have any other requirement, we can make a special design.

Technical specification:

Front bearing technique data
Rear bearing technique data

Unit: mm

*Front bearing technique data*
d	L		L1		D1	D2	Weight(kg)
d	Type A	Type B	Type A	Type B	D1	D2	Type A	Type B
68	90	100	–	–	–	98	3	4
78	100	120	–	–	–	112	5	6
88	110	135	–	–	–	124	6	7
98	125	150	–	80	134	135	8	9
108	140	165	–	90	144	145	9	10
118	150	180	80	95	155	156	11	13
128	165	195	90	105	165	166	13	15
138	175	210	95	110	177	178	15	18
148	190	225	100	120	188	190	19	21
156	200	240	105	125	204	205	24	28
166	215	255	115	135	214	215	27	32
176	225	270	120	140	224	225	31	35
186	240	285	125	150	235	236	35	40
196	250	300	135	160	245	246	40	45
215	275	330	155	175	264	266	45	55
235	300	360	160	190	286	288	57	68
245	315	375	170	200	302	304	70	83
255	325	390	175	205	313	315	76	91
275	350	420	185	220	336	338	92	111
295	375	450	200	235	358	360	110	130
315	400	480	210	250	378	380	124	148
345	440	525	230	275	408	415	148	176
375	475	570	250	295	442	444	182	220
395	500	600	260	315	468	470	222	266
445	560	680	300	355	522	524	296	356
465	590	710	310	370	543	545	326	392
495	625	750	330	395	578	580	390	468
525	660	800	345	415	608	610	435	528
555	700	840	365	435	638	640	486	583
595	750	900	395	460	680	690	626	750

Unit: mm

*Rear bearing technique data*
d	L		L1		D1	D2	Weight (kg)
d	Type A	Type B	Type A	Type B	D1	D2	Type A	Type B
70	175	210	95	110	99	100	6	8
80	200	240	105	125	114	115	10	11
90	220	270	115	140	124	125	12	14
100	250	300	130	155	134	135	14	17
110	280	330	140	170	146	147	18	21
120	300	360	155	185	157	158	22	26
130	330	390	170	200	167	168	24	28
140	350	420	185	220	179	180	31	37
150	380	450	195	235	191	192	38	45
160	400	480	210	250	208	209	50	60
170	420	510	220	265	217	218	55	65
180	450	540	235	280	227	228	60	75
190	480	570	250	295	239	240	70	85
200	500	600	260	310	249	250	80	95
220	550	660	280	340	279	280	115	135
240	600	720	310	370	291	292	120	145
250	620	750	320	385	306	308	140	170
260	650	780	335	400	318	320	155	185
280	700	840	360	430	340	342	185	220
300	750	900	385	460	360	364	220	260
320	800	960	410	490	383	385	250	300
350	880	1050	450	530	414	416	305	360
380	950	1140	480	585	446	448	370	440
400	1000	1200	515	615	474	476	455	550
450	1120	1350	575	690	526	528	570	690
470	1180	140	605	720	548	550	600	790
500	1250	1500	640	765	582	584	780	930
530	1320	1590	675	810	613	615	880	1060
560	1400	1680	715	855	643	645	980	1180
300	1500	1800	765	915	692	695	1260	1515
