HVG MARINE PROPULSION EQUIPMENT 0146: HPSD-II Water lubrication End Face Seal

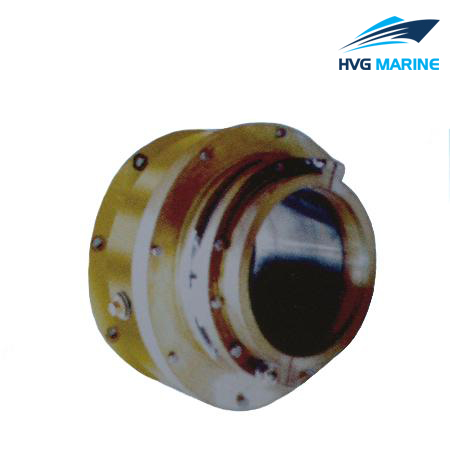

This product is HPSD-II type water lubricated end face seal. It is suitable for kinds of vessels whose working medium is water and which have a large stern shaft diameter and axial vibration. The sizes of this product in the below are for reference only. The product can be manufactured according to customer’s request.
|
Specifications |
Dimensions (mm) |
|||||||
|
B |
C |
D |
L |
T |
E |
F |
||
|
155 |
340 |
300 |
255 |
340 |
20 |
8 |
M12 |
10 |
|
185 |
450 |
390 |
230 |
298 |
25 |
8 |
M20 |
10 |
|
200 |
460 |
420 |
350 |
370 |
25 |
8 |
M20 |
10 |
|
230 |
460 |
395 |
345 |
370 |
25 |
8 |
M16 |
10 |
|
255 |
480 |
440 |
370 |
370 |
25 |
8 |
M20 |
10 |
|
280 |
500 |
440 |
400 |
330 |
25 |
8 |
M20 |
10 |
|
302 |
550 |
500 |
425 |
460 |
25 |
8 |
M20 |
10 |
|
325 |
590 |
510 |
445 |
460 |
25 |
8 |
M20 |
12 |
|
354 |
670 |
620 |
570 |
460 |
25 |
8 |
M20 |
12 |
|
385 |
700 |
595 |
515 |
520 |
30 |
8 |
M24 |
12 |
|
405 |
680 |
630 |
530 |
455 |
30 |
8 |
M24 |
12 |
|
425 |
740 |
635 |
555 |
520 |
30 |
8 |
M24 |
12 |
|
445 |
715 |
655 |
575 |
495 |
30 |
8 |
M24 |
12 |
|
465 |
735 |
675 |
595 |
495 |
30 |
8 |
M24 |
12 |
|
490 |
750 |
700 |
620 |
500 |
30 |
12 |
M20 |
15 |
|
520 |
800 |
750 |
680 |
520 |
30 |
12 |
M20 |
15 |
|
550 |
900 |
780 |
695 |
520 |
30 |
12 |
M24 |
15 |
|
590 |
950 |
820 |
735 |
580 |
30 |
12 |
M24 |
15 |
