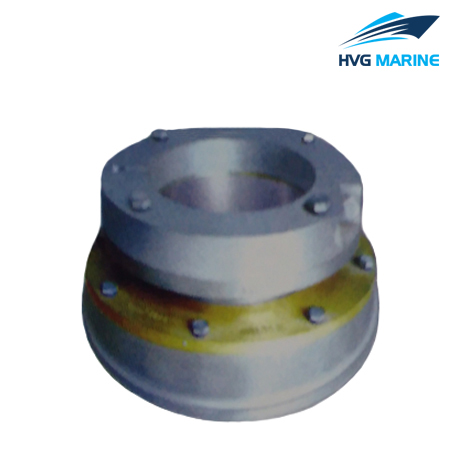

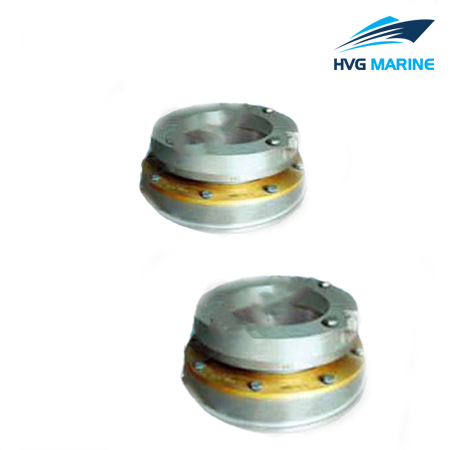

HVG MARINE PROPULSION EQUIPMENT 0144: Marine JQ/CS 39 Type Stern Tube Seal

This product is JQ/CS 39 type stern tube seal. Approved by certificates such as CCS, ABS, DNV, BV, this type of apparatuses is suggested to be chosen when inland water vessels have oil as their lubricating working medium and do not have a large stern shaft.

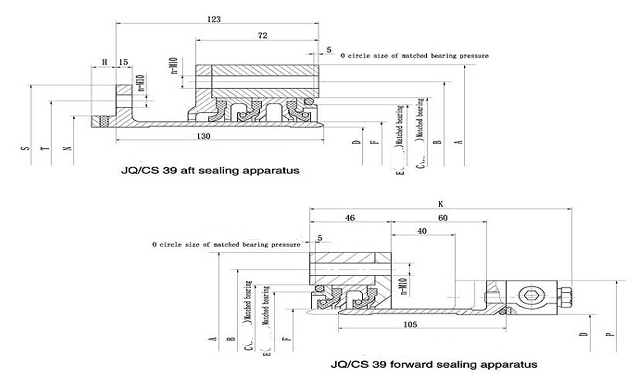

Drawing of Marine JQ/CS 39 Type Stern Tube Seal

Technical specification:

Drawing and specification:

unit: mm

Model	D	A	B	C	E	H	K	T	N	P	S	n	F	Weight (kg)
Model	D	A	B	C	E	H	K	T	N	P	S	n	F	Front	Back
70JQ/CS39	70	176	150	122	110	17.5	144	116	90	130	145	6	80	9	10.5
80JQ/CS39	80	185	160	132	120	17.5	146	126	100	140	155	6	90	10.2	11.8
90JQ/CS39	90	195	170	142	130	17.5	148	136	110	150	165	8	100	11.5	13.5
100JQ/CS39	100	205	180	152	140	175	150	146	120	160	175	8	110	13	16
110JQ/CS39	110	220	190	162	150	17.5	150	156	130	170	185	8	120	15	19
120JQ/CS39	120	235	200	172	160	20	152	166	145	180	195	8	130	17.8	22.5
