HVG MARINE PROPULSION EQUIPMENT 0148

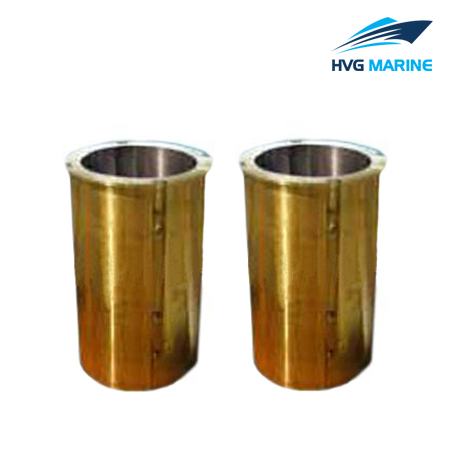

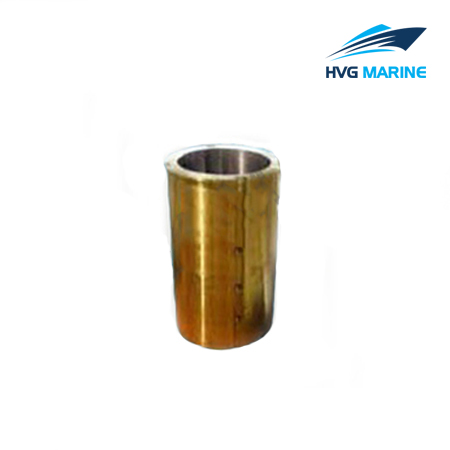

HVG MARINE PROPULSION EQUIPMENT 0148: JQ/CS 49 Type Stern Tube Bearing

Made of white metal, this type of stern tube bearing is suitable for inland water vessels whose stern tube working medium is oil. Our products are designed with high quality. We promise to offer the first-class service. This product is approved by many classification society certificates such CCS, ABS, BV, DNV, GL, and RINA. To meet customer’s demand, we can offer the appointed certificate.

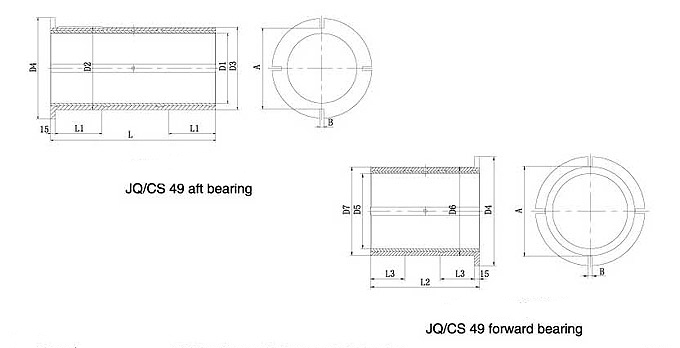

Drawing of JQ/CS 49 Type Stern Tube Bearing

Technical specification:

Drawing and specification:

unit: mm

Model	D1	D2	D3	D4	D5	D6	D7	L	L1	L2	L3	A	B	Weight (kg)
Model	D1	D2	D3	D4	D5	D6	D7	L	L1	L2	L3	A	B	Front	Back
130JQ/CS49	145	185	184	230	140	185	184	300	90	210	50	176	12	20	28
140JQ/CS49	155	195	194	240	150	190	189	360	90	230	50	186	12	22	32
150JQ/CS49	165	205	204	250	160	205	204	380	100	240	60	196	12	25	36
160JQ/CS49	175	220	219	265	170	225	224	410	100	260	60	210	14	28	40
170JQ/CS49	185	230	229	276	180	230	229	430	100	270	70	220	14	32	44
180JQ/CS49	195	250	249	300	190	245	244	460	110	290	80	240	14	36	48
190JQ/CS49	205	260	259	310	200	255	254	480	120	300	80	250	14	41	62
200JQ/CS49	215	260	259	310	210	255	254	510	140	310	90	255	14	46	70
210JQ/CS49	225	266	265	320	220	261	260	530	150	320	100	260	14	51	80
220JQ/CS49	235	280	279	340	230	275	274	560	150	340	100	275	14	56	90
230JQ/CS49	245	295	294	350	240	295	294	580	160	360	100	284	16	62	100
240JQ/CS49	260	305	304	360	255	300	299	620	170	370	110	300	16	67	110
250JQ/CS49	270	315	314	370	265	315	314	650	180	380	110	310	16	73	120
260JQ/CS49	280	330	329	400	275	325	324	680	200	400	120	315	18	80	135
270JQ/CS49	290	340	339	400	285	335	334	710	200	420	120	325	18	86	145
280JQ/CS49	300	350	349	410	295	345	344	730	210	440	120	335	18	92	155
290JQ/CS49	310	360	359	420	305	355	354	750	220	460	120	345	18	100	165
300JQ/CS49	320	370	369	430	315	365	364	780	230	470	120	355	18	110	175
310JQ/CS49	330	380	379	440	325	375	374	800	240	480	120	365	18	120	185
320JQ/CS49	340	390	389	450	335	385	384	830	240	500	130	375	18	130	200
330JQ/CS49	350	400	399	460	345	395	394	850	240	520	130	385	18	140	215
340JQ/CS49	360	410	409	470	355	405	404	880	250	530	130	395	18	155	230
350JQ/CS49	370	420	419	480	365	415	414	900	250	550	140	405	18	170	245
