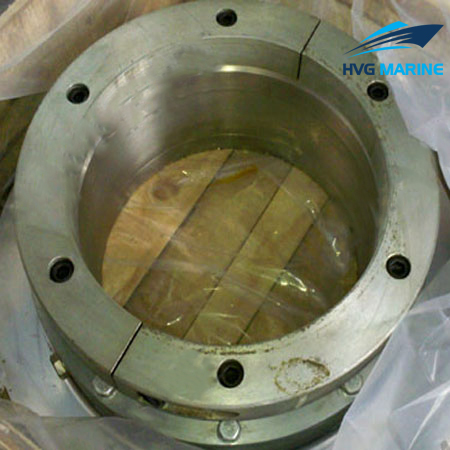

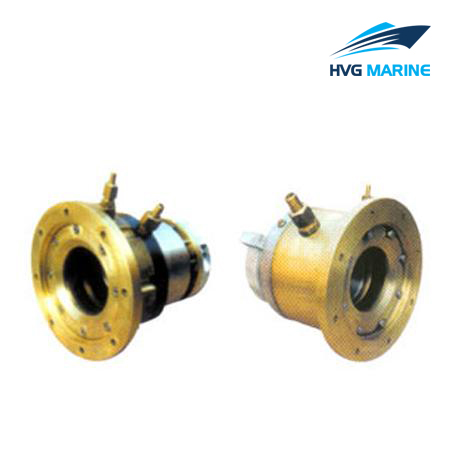

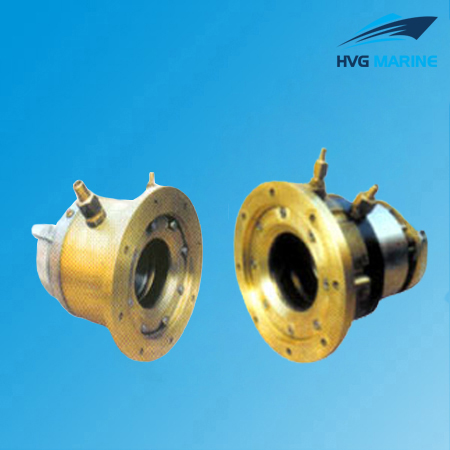

HVG MARINE PROPULSION EQUIPMENT 0147: HPSD/HPSD-I Water Lubricated Stern Shaft Seal
This product is HPSD/HPSD-I type water lubricated stern shaft seal. It is suitable for kinds of vessels whose working medium is water. When the axial vibration is less than 1mm, the HPSD type can be used. When the axial vibration is less than ±3mm and the speed is high, the HPSD-I type can be chosen.
|
Type |
70 |
90 |
110 |
130 |
150 |
170 |
190 |
210 |
230 |
250 |
270 |
290 |
310 |
330 |
350 |
370 |
390 |
410 |
430 |
450 |
|
|
Dimensions (mm) |
A |
70 |
90 |
110 |
130 |
150 |
170 |
190 |
210 |
230 |
250 |
270 |
290 |
310 |
330 |
350 |
370 |
390 |
410 |
430 |
450 |
|
WMAX |
55 |
75 |
95 |
115 |
135 |
155 |
175 |
195 |
215 |
230 |
250 |
270 |
290 |
310 |
325 |
345 |
365 |
385 |
405 |
425 |
|
|
B |
250 |
265 |
285 |
300 |
330 |
370 |
380 |
420 |
440 |
460 |
480 |
510 |
530 |
540 |
590 |
620 |
640 |
670 |
690 |
710 |
|
|
C |
225 |
240 |
260 |
260 |
280 |
330 |
345 |
385 |
405 |
425 |
445 |
475 |
495 |
500 |
550 |
570 |
590 |
615 |
635 |
655 |
|
|
D |
165 |
180 |
195 |
215 |
235 |
255 |
275 |
305 |
325 |
345 |
365 |
385 |
405 |
425 |
445 |
465 |
485 |
515 |
535 |
555 |
|
|
L |
290 |
290 |
290 |
290 |
290 |
290 |
290 |
320 |
320 |
320 |
320 |
320 |
320 |
320 |
320 |
320 |
320 |
345 |
345 |
345 |
|
|
E |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
|
|
D |
M10 |
M10 |
M10 |
M10 |
M12 |
M12 |
M12 |
M16 |
M16 |
M16 |
M16 |
M16 |
M16 |
M20 |
M20 |
M20 |
M20 |
M20 |
M20 |
M20 |
|
|
T |
18 |
18 |
20 |
20 |
20 |
20 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
30 |
30 |
30 |
|
