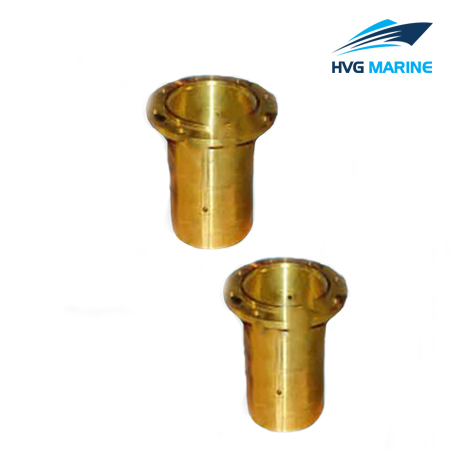

HVG MARINE PROPULSION EQUIPMENT 0152: JQ/CS 39 Type Stern Tube Bearing

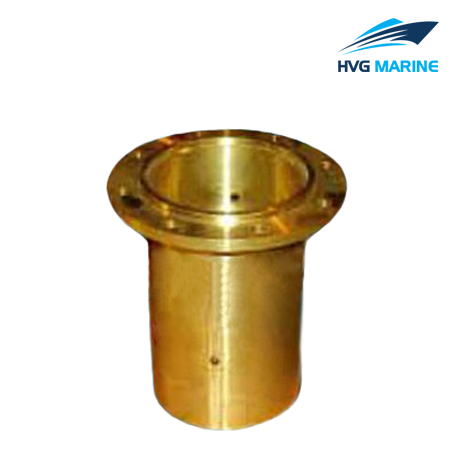

This product is the 39 type stern tube bearing for ships. It is made of white metal and suitable for inland water vessels whose stern tube working medium is oil and which do not have a large stern shaft. This type of stern tube bearing is approved by certificates CCS, BV, ABS, GL, LR, DNV, NK, etc. We can provide the specified one according to customer’s requirement.

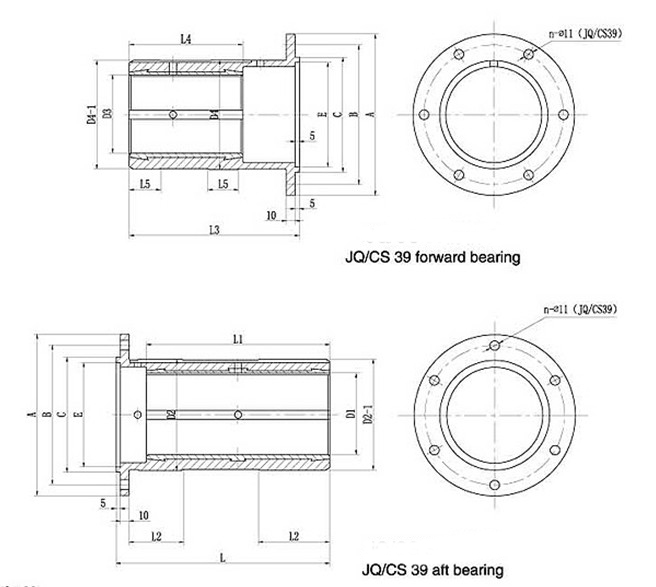

Drawing of JQ/CS 39 Type Stern Tube Bearing
unit: mm
|
Model |
D1 |
D2 |
D3 |
D4 |
L |
L1 |
L2 |
L3 |
L4 |
L5 |
n |
Weight (kg) |
|
|
Front |
Back |
||||||||||||
|
70JQ/CS39 |
80 |
118 |
78 |
116 |
220 |
185 |
50 |
175 |
110 |
30 |
6 |
7 |
10 |
|
80JQ/CS39 |
90 |
128 |
88 |
126 |
245 |
210 |
60 |
195 |
130 |
35 |
6 |
8.3 |
12 |
|
90JQ/CS39 |
100 |
138 |
98 |
136 |
275 |
240 |
70 |
215 |
150 |
40 |
8 |
10 |
15 |
|
100JQ/CS39 |
110 |
148 |
108 |
146 |
295 |
260 |
80 |
235 |
170 |
40 |
8 |
11.5 |
18 |
|
110JQ/CS39 |
120 |
158 |
118 |
156 |
315 |
280 |
90 |
245 |
180 |
45 |
8 |
13.7 |
21 |
|
120JQ/CS39 |
130 |
168 |
128 |
166 |
345 |
31 |
90 |
265 |
200 |
50 |
8 |
15 |
25 |
