HVG MARINE PROPULSION EQUIPMENT 0156

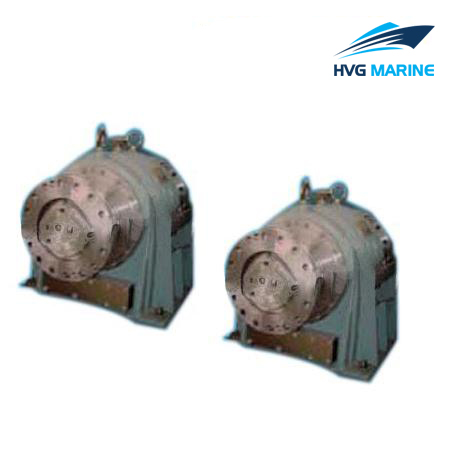

HVG MARINE PROPULSION EQUIPMENT 0156: TZ Series Shafting Gliding Thrust Bearing

This product is marine shafting gliding thrust bearing. Approved by classification society certificates like CCS, ABS, BV, DNV, it is suitable for vessels that have a large thrust requirement and a small axial vibration requirement.

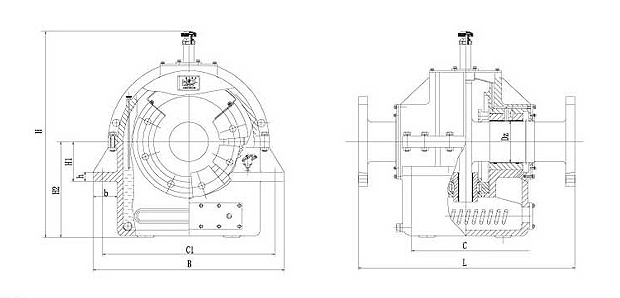

Drawing of TZ Series Shafting Gliding Thrust Bearing

Technical specification:

Drawing and specifications:

Model	Shaft Journal Dia. Dz(mm)	P_{max (kgf)}	N (rpm)	Approximate Sizes of Appearance (mm)					Approximate Sizes of Appearance (mm)
				L	B	H	H1	H2	b	h	Base Bolt Hole				C	C1
											Reaming		Bore
											d1	Quantity	d2	Quantity
TZ140	140	6000	600/300	550	620	650	140	335	70	25	21	4	21	4	550	360
TZ160	160	9000	600/200	640	700	730	150	380	70	25	21	4	21	4	620	400
TZ180	180	12000	600/200	720	800	800	150	400	70	30	32	4	31	4	770	560
TZ200	200	16000	500/180	760	840	835	160	425	70	30	32	4	31	4	770	560
TZ220	220	20000	500/180	830	870	855	180	465	75	35	32	4	31	8	800	540
TZ280	280	30000	350/120	950	990	975	180	525	80	35	38	4	37	8	920	760
