HVG MARINE PROPULSION EQUIPMENT 0155

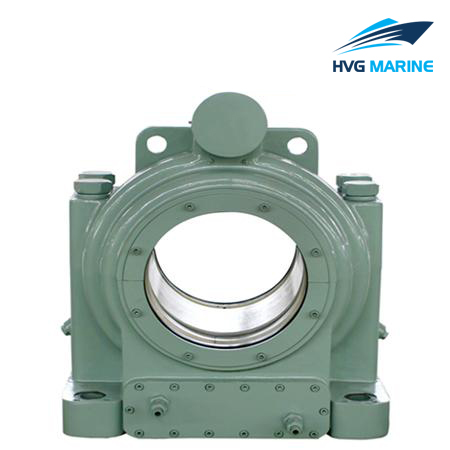

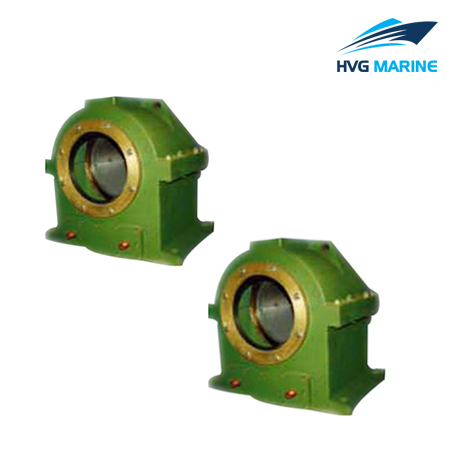

HVG MARINE PROPULSION EQUIPMENT 0155: Large Pressure Intermediate Bearing

This kind of large pressure intermediate bearing is suitable for vessels whose shafting pressure is larger than normative pressure (0.6MPa) and which need self-aligning. It is approved by CCCS, BV, DNV, ABS, KR, NK, LRS, etc.

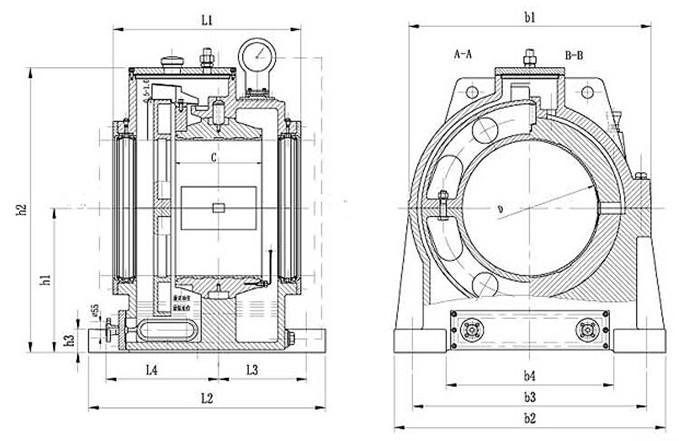

Drawing of Large Pressure Intermediate Bearing

Technical specification:

Drawing and specifications:

Unit: mm

D	Joint Bolts	b1	b2	b3	b4	c	h1	h2	h3	L1	L2	L3	L4
120~160	4×M20	320	310	270	160	86	185	360	32	306	320	155	115
161~200	4×M20	380	370	320	190	105	220	420	32	330	350	170	130
201~240	4×M24	450	440	380	230	126	270	500	35	354	390	185	145
241~280	4×M30	514	506	430	260	150	300	560	38	46	450	205	175
281~330	4×M30	604	596	520	320	10	370	645	43	436	480	220	190
331~390	4×M36	684	664	580	360	200	380	730	48	480	540	245	215
391~450	4×M36	770	760	670	440	230	425	820	93	535	585	270	235
451~510	4×M42	860	860	760	480	260	480	920	106	620	700	320	280
511~570	4×M42	960	910	810	510	290	530	1020	120	670	740	340	300
571~650	4×M48	1080	1030	910	570	330	610	1150	147	770	850	385	345
651~740	4×M48	1190	1170	1020	660	380	720	1330	177	840	930	425	375
