HVG MARINE MOORING EQUIPMENT 0332

HVG MARINE MOORING EQUIPMENT 0332: Bracket

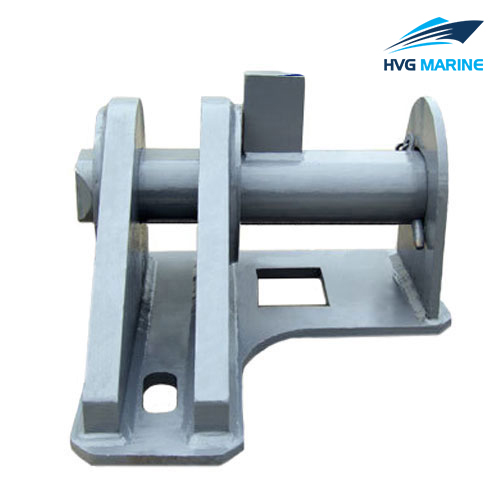

HVG MARINE MOORING EQUIPMENT 0332 towing bracket is marine deck equipment towing and mooring bracket. It is welded to the deck and is rated to withstand the breaking load of the chain being used. HVG MARINE MOORING EQUIPMENT 0332 towing bracket is applicable to the chain cables whose diameter is 52mm to 132mm. There are welding slots on the bracket. For more detailed information, please feel free to contact us.

Features:

1. Japanese Standard: JIS F2029-1997
2. Material: Steel
3. Suitable Chain Size: 54mm, 64mm, 76mm
4. Weld Insert on Deck
5. Certificate: BV, ABS, CCS, DNV, LR
6. Application: Emergency Towing System and Single Point Mooring
7. Smooth Surface with No Burs or Sharp Edges
8. Can be Customized

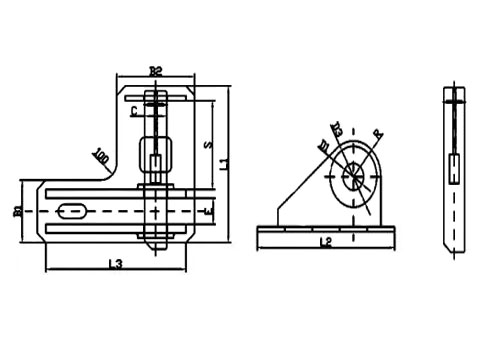

Drawing:

Technical specification:

Technical specification

Nominal Dia.	Dimension(mm)										Mass(kgs)	SWL(kN)	BBL(kN)
Nominal Dia.	L3	L2	L1	B1	E	S	B2	D1	D3	R	Mass(kgs)	SWL(kN)	BBL(kN)
54	450	500	450	180	75	255	250	75	170	100	55	1000	2000
64	510	580	500	205	85	280	270	85	190	110	125	1500	3000
76	625	700	600	260	105	320	340	100	230	135	200	2000	4000
