HVG MARINE MOORING EQUIPMENT 0320

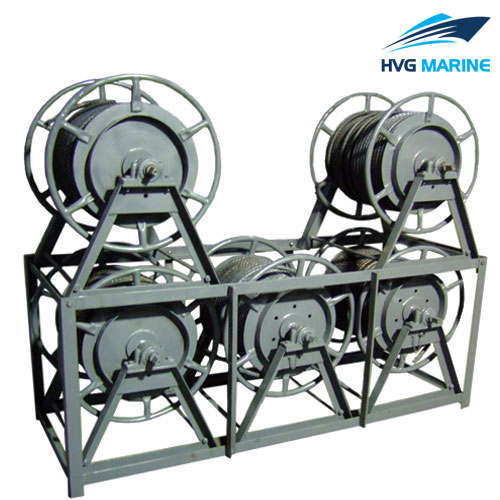

HVG MARINE MOORING EQUIPMENT 0320: Mooring Steel Wire Reel

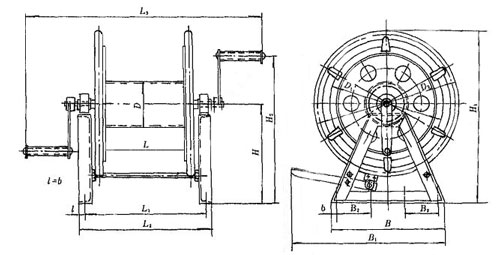

HVG MARINE MOORING EQUIPMENT 0320 marine steel wire reel is used to store steel wire for all ships. It is not suitable for towing or stranded cables. This standard marine ship rope reel has four different types: type A, AW, B, C. Except type AW, all the other three types have crank handle. Please refer to the drawing and corresponding product parameters.

Features of HVG MARINE MOORING EQUIPMENT 0320

1. Applicable to Store Marine Steel Ropes;
2. Four Type: Type A,AW,B,C;
3. Applicable Steel Wire Max. Diameter: 13.0~56mm;
4. Max. Length of Steel Wire:120mm~300mm;
5. Bolts Quantity: 6~14;
6. Material: Steel;
7. Smooth and Clean Surface without Defects such as Burrs, Cracks, Sharp Corners etc.
8. Lubricated, Anti-corrosive Painting
9. Certificate: ABS, CCS, BV, DNV, NK etc.
10. Meet Customer’s Special Requirements

We supply various marine equipment. If you’re interested in our products, please feel free to contact us. We’ll give you a quick and satisfactory reply.

Technical specification:

Technical specification

Unit:mm

Model Type	Max. Diameter of Steel Wire	D	D1	D2	L	L1	L2	L3	B	B1	H	H1	H2	Foot Bolts				Weight(kg)
Model Type	Max. Diameter of Steel Wire	D	D1	D2	L	L1	L2	L3	B	B1	H	H1	H2	Thread Diameter	Quantity	B	b	Weight(kg)
A13	13.0	170	330	530	350	528	584	1161	560		420	685	670	M16	6	240	10	69
A17	17	230	170	670	450	628	684	1281	620	925	495	830	745	M16	8	180	10	86
A21	20.5	280	560	760	500	700	770	1340	650	945	535	915	875	M16	8	190	40	118
A26	26	340	660	860	550	750	820	1425	695	972	610	1040	950	M16	8	205	40	131
A32	32	425	800	1000	650	850	920	1510	740	1024	665	1165	1510	M16	8	220	40	172
