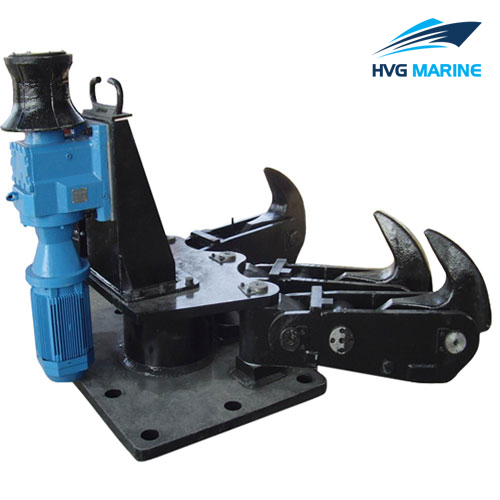

HVG MARINE MOORING EQUIPMENT 0314: Triple Quick Release Mooring Hook

Quick release hook mainly consists of cable releasing mechanism and winch mechanism. It is especially suitable for large terminals where have less operators, large wind and waves and need mooring and releasing the mooring ropes immediately. Quick release hook can help the mooring ropes released from the its hook once the vessel has to leave the dock for emergency. It ensures both the dock and vessel’s safety and avoids large losses.

Quick release mooring hook can be assembled with single hook, double hooks, triple hooks and quadruple hooks. To meet different requirements of our customers, we supply various types and sizes of quick release hooks. For more detail information, please do not hesitate to contact us via e-mail or phone call. We’re sincere to establish Long-term cooperation relationship with you.

Main Technical Hook:

1. Number of Hooks: 3 Hooks
2. Safe Working Load: 400kN to 1500kN
3. Weight exclude Capstan: 1200kg to 3586kg
4. Operating force by handle: < 150N
5. Swing angle of hook body in horizontal: 45~90degrees
6. Swing angle of hook body in vertical: 45degrees
7. Puling speed of electric capstan: 18~25m/min
8. Pull of electric capstan: 10KN~30KN
9. Working diameter of capstan: 250mm

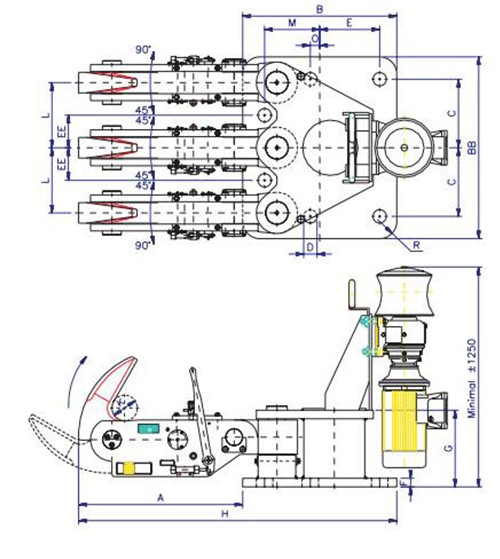

Drawing:

Technical specification:

Technical specification

S.W.L	Cap.	Wt.	A	B	BB	C	D	E	EE	F	G	H	K	L	M	O	R	X
400	1200	707	598	700	800	310	62	260	145	35	370	1296	96	290	275		90	6*M56
600	1800	1268	863	800	900	335	70	310	162	45	407	1663	130	325	310	65	100	6*M64
750	2250	1540	893	850	1000	375	78	325	175	45	417	1743	130	350	325	60	100	6*M72
1000	3000	2144	959	900	1060	400	78	350	190	50	417	1859	150	380	322	55	100	6*M72
1250	3750	2450	1030	900	1060	400	86	350	190	55	479	1930	150	380	322	55	100	7*M80
1500	4500	3586	1235	1020	1200	475	96	385	212	55	499	2255	150	425	385	115	125	7*M90
