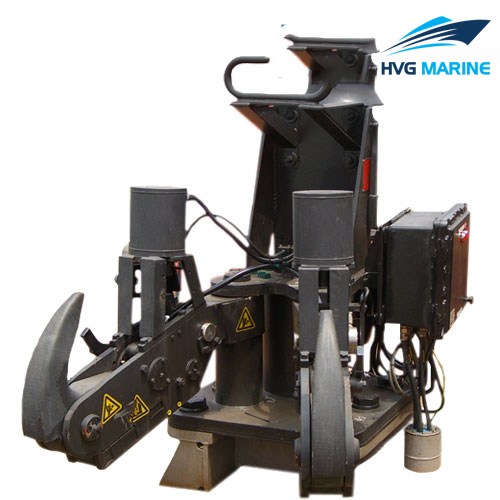

HVG MARINE MOORING EQUIPMENT 0315: Double Quick Release Mooring Hook

Quick release hook, mounted on the pier, is a special device for ship’s stranding, mooring and releasing ropes. It is the renewal product of bollards. Marine quick release hooks reduce the labor intensity of workers, improve the labor efficiency and enhance the safety and reliability. It is widely used under in the place where need mooring or releasing ropes safely and immediately. Quick release hook can be optionally equipped with remote monitoring and control system. It has the functions of anchor hook pin axis load monitoring, liquid crystal display, remote control, overload sound and light alarm and other function.

Specification of Double Quick Release Hook

1. Safe Working Load: 400kN to 1500kN
2. Capacity Mounting Base: 800kN to 3000kN
3. Weight: 491~2332kg
4. Quantity of Hook: 2 hooks
5. Material: Hook body: Cast steel or quality alloy
6. Entirely sprayed with zinc and the thickness.
7. Easy and safe release with either a slack or loaded mooring line
8. Free swiveling
9. Locking device to prevent accidental or unauthorized operation
10. Optional integral capstans for hauling in the mooring line
11. Optional remote control system for remote hook release
12. Optional mooring load monitoring system for continuous measurement of mooring loads
13. Can be customized for special requirements
14. Certificate: CCS, ABS, BV, GL,DNV,LR etc.

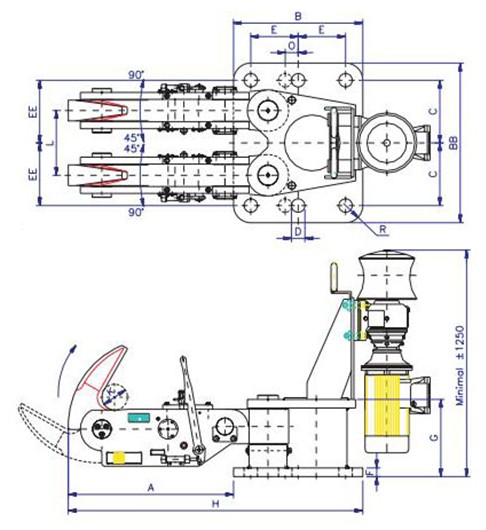

Drawing:

Technical specification:

Technical specification

S.W.L.	Cap.	Wt.	A	B	BB	C	D	E	EE	F	G	H	K	R	X
400	800	491	583	650	700	260	54	235	260	35	370	1233	96	90	6*M48
600	1200	878	788	750	780	290	62	275	290	45	407	1536	130	100	6*M56
750	1500	1049	888	750	850	325	70	275	325	45	417	1638	130	100	6*M64
1000	2000	1439	959	750	925	363	78	275	363	50	447	1709	150	100	6*M72
1250	2500	1602	1030	750	925	363	86	275	363	55	479	1780	150	100	6*M80
1500	3000	2332	1210	750	1000	400	86	275	400	55	499	1960	150	100	7*M80
