    HVG MARINE MOORING EQUIPMENT 0318

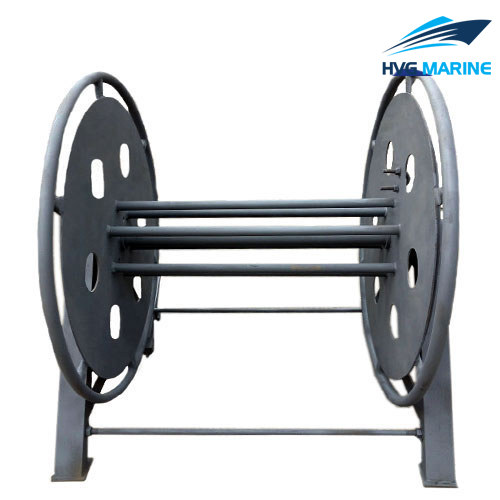

    HVG MARINE MOORING EQUIPMENT 0318: Marine Fiber Wire Reel

    It is applicable to all ships to store marine fiber ropes. Fore more specific parameters, please refer to the following parameters sheet.

    Features of HVG MARINE MOORING EQUIPMENT 0318

    • 1. Applicable to Fiber Wires;
    • 2. Diameters of Fiber Wire: 28mm~72mm;
    • 3. Fiber Wire Length: 140mm~220mm;
    • 4. Screw Diameter: M16;
    • 5. Screw Quantity: 8,10,12;
    • 6. Material: Steel;
    • 7. Smooth and Clean Surface without Defects such as Burrs, Cracks, Sharp Corners etc.
    • 8. Lubricated, Anti-corrosive Painting
    • 9. Certificate: ABS, CCS, BV, DNV, NK etc.
    • 10. Meet Customer’s Special Requirements

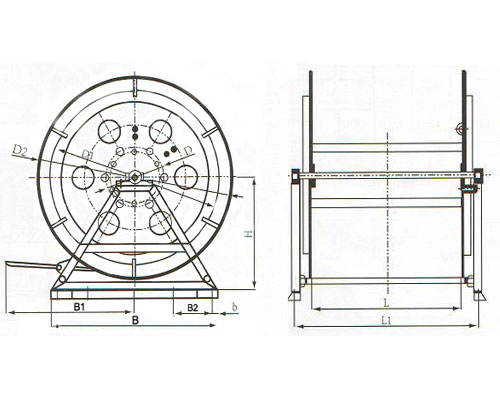

    Technical specification:

    • Technical specification

    unit: mm



    Standard Dia of Fiber Wire Arange Length D D1 D2 L L1 B B1 H Anchor Bolt Weight(kg)
    Screw Dia Amount b B2
    30 28~30 140~220 190 650 820 750 930 650 630 520 M16 8 40 190 85.1
    34 32~34 160~220 190 650 820 860 1046 650 630 520 89.1
    38 36~38 170~220 190 650 820 880 1056 650 630 520 93.1
    42 40~42 170~220 255 810 980 850 1056 820 650 575 10 185 118.5
    46 44~46 180~220 255 810 980 930 1126 820 650 575 122.5
    50 48~50 180~220 325 970 1140 910 1108 980 800 655 225 140.3
    54 52~54 190~220 325 970 1140 930 1128 980 800 655 145.3
    60 56~60 190~220 405 1150 1320 905 1108 1140 880 745 12 212 182.6
    72 64~70~72 200~220 490 1330 1500 920 1132 1310 1030 830 246 216.1
