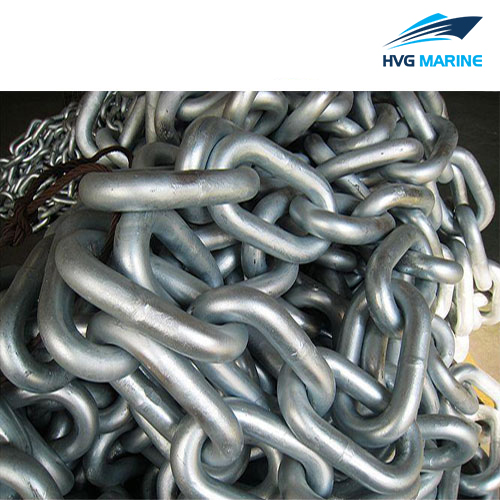

HVG MARINE MOORING EQUIPMENT 0330: Studless Link Anchor Chain

Studless link anchor chains, also called open link anchor chain, are often used for offshore moorings. Compared with stud link anchor chains, the studless link anchor chains have the features of less weight, being suitable for larger shackles without end links and the avoidance of stud loosing problems.

Product Detail

1. Chain Diameter: 12.5mm to 70mm
2. Grade&Material: U2-CM490; U3-CM690
3. Surface: Self-colored, hot dip galvanized, painted black or as required
4. Certificate: CCS, ABS, LR, BV, NK, GL,DNV,RS, IRS etc.
5. Application: for permanent moorings

Technical specification:

Specification

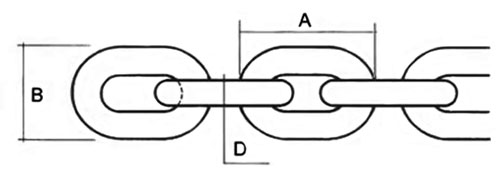

Diamter	CHAIN LINK SIZE		BM2		BM3		APPROX.
			U2 OPEN LINK CHAIN		U3 OPEN LINK CHAIN		WEIGHT
			U2 OPEN LINK CHAIN		U3 OPEN LINK CHAIN		27.5M
	OUTSIDE	OUTSIDE	PROOF	BREAKING	PROOF	BREAKING	KG
	LENGTH	WIDTH	LOAD	LOAD	LOAD	LOAD
MM	MM	MM	KN	KN	KN	KN
12.5	75	45	41.2	82.6	56.4	112.8	85.41
14	84	50.4	51	101.9	70.76	141.51	106.55
16	96	57.6	66.2	132.3	92.42	184.83	139.43
17.5	105	63	78.89	157.78	110.55	221.1	178.35
19	114	68.4	93.6	187.2	130.32	260.64	217.68
20.5	123	73.8	108.64	217.27	151.7	303.42	229.14
22	132	79.2	125.4	250.9	174.4	349.4	264.49
24	144	86.4	149.9	298.9	207.9	415.8	341.82
26	156	93.6	175.4	350.8	244	488	369.94
28	168	100.8	203.8	406.7	283	566	427.04
30	180	108	234.2	467.5	324.9	649.8	490.98
32	192	115.2	265.6	531.2	369.6	739.3	559.65
34	204	122.4	299.9	599.8	417.3	834.6	671.52
36	216	129.6	336.1	672.3	467.8	935.7	707.85
38	228	136.8	374.4	748.7	521.3	1042.5	788.98
40	240	144	414.5	829.1	577.6	1155.2	869.36
42	252	151.2	457.7	915.3	636.8	1273.6	959.3
44	264	158.4	502.7	999.6	698.9	1398	1111.25
46	276	165.6	548.8	1097.6	763.9	1527.8	1152.07
48	288	172.8	597.8	1195.6	831.7	1663.5	1256.26
50	300	180	648.8	1239.6	902.5	1805	1360.41
52	312	187.2	697.63	1395.26	976.14	1952.28	1485.61
54	324	194.4	752.33	1504.66	1052.68	2105.36	1648.08
56	336	201.6	809.09	1618.18	1132.1	2264.2	1715.97
58	348	208.8	867.91	1735.82	1214.4	2428.8	1844.5
60	360	216	928.8	1857.6	1299.6	2599.2	1973.29
62	372	223.2	991.75	1983.5	1387.68	2775.36	2101.56
64	384	230.4	1056.77	2113.54	1478.66	2957.32	2298.47
66	396	237.6	1123.85	2247.7	1572.52	3145.04	2398.1
68	408	244.8	1192.99	2385.98	1669.26	3338.52	2522.88
70	420	252	1264.2	2528.4	1768.9	3537.8	2697.65
