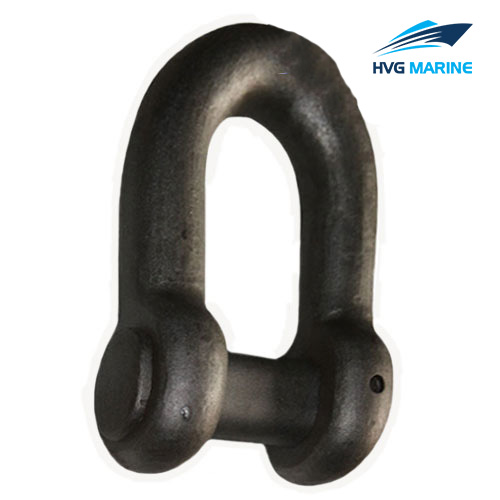

HVG MARINE MOORING EQUIPMENT 0328: Anchor Chain End Shackle

End shackle is used to join anchor chain and anchor or the fixing eye plate in the chain locker. It is made by drop forged and hot dip galvanized. We supply various marine shackles with different sizes and weight. For more detail information, please feel free to contact us.

Specification:

Model Type: End Shackle = E.S
Application: Used in Marine Industry
Grade Classification: Grade 2 or Grade 3
Material: Forged Steel
Nominal Diameter: 14mm to 162mm
Proof Load: 82KN to 7990KN
Breaking Load: 116KN to 11180KN
Surface Treatment: Drop Forged, Electrogalvanized /Hot-dip Galvanized
Certificate: CCS, BV, LR,NK,DNV,GL,RINA,KR etc.

Drawing:

Technical specification:

Technical specification

Diameter(mm)	Length(mm)	Width(mm)	Proof Load(KN)	Breaking Load(KN)
14	122	73	82	116
16	139	83	107	150
17.5	152	91	127	179
19	165	99	150	211
20.5	178	107	175	244
22	191	114	200	280
24	209	125	237	332
26	226	135	278	389
28	244	146	321	449
30	261	156	368	514
34	296	176	468	655
36	313	187	523	732
38	331	198	581	812
40	348	208	640	896
42	365	218	703	981
44	383	229	769	1080
46	400	239	837	1170
48	418	250	908	1270
50	435	260	981	1370
52	452	270	1060	1480
54	470	270	1140	1590
56	487	291	1220	1710
58	505	302	1290	1810
60	539	312	1380	1940
62	539	322	1470	2060
64	557	333	1560	2190
66	574	343	1660	2310
68	592	354	1750	2450
70	609	364	1840	2580
73	635	380	1990	2790
76	661	395	2150	3010
78	678	406	2260	3160
81	705	421	2410	3380
84	731	437	2580	3610
87	757	452	2750	3850
90	783	468	2920	4090
92	800	478	3040	4260
95	827	494	3230	4510
97	844	504	3340	4680
100	870	520	3530	4940
102	887	530	3660	5120
105	914	546	3850	5390
107	931	556	3980	5570
111	966	577	4250	5940
114	992	593	4440	6230
117	1018	608	4650	6510
120	1044	624	4850	6810
122	1061	634	5000	7000
124	1079	645	5140	7200
127	1105	660	5350	7490
130	1131	676	5570	7800
132	1148	686	5720	8000
137	1192	712	6080	8510
142	1235	738	6450	9030
147	1279	764	6840	9560
152	1322	790	7220	10100
157	1366	816	7600	10640
162	1409	842	7990	11180
