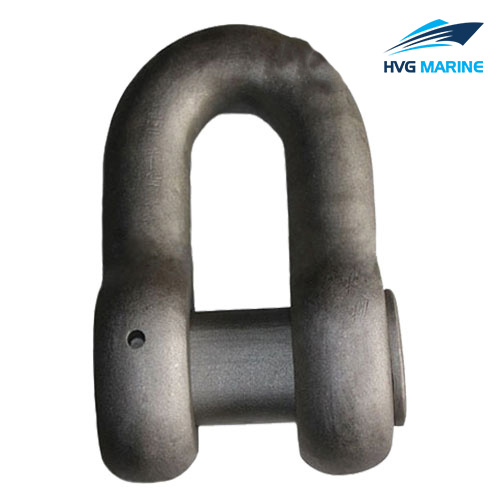

HVG MARINE MOORING EQUIPMENT 0327: Anchor Chain Joining Shackle

Anchor chain joining shackle belongs to one part of anchor chain accessories, which is used to connect eack links of anchor chains. Joining shackle is applicable to both grade 2 and grade 3 anchor chains whose diameters is from 14mm to 162mm. It is well drop forged shackle for mooring and anchor chains.

We supply various types and sizes of marine shackles. For more information about our products, please feel free to contact us via an e-mail or a phone call. We’re sincere to establish cooperation relationship with you.

Specification

Model Type: Joining Shackle JS
Application: Marine Industry for Mooring
Grade Classification: U2/U3
Material: Forged Steel
Nominal Diameter:14mm to 162mm
Proof Load:82KN to 11180KN
Breaking Load:116KN to 15980KN
Surface Treatment: Hot Dip Glavanized & Electrogalvanized
Certificate: CCS, BV, LR,NK,DNV,GL,RINA,KR etc.

Drawing:

Technical specification:

Technical specification

Material: Steel

Grade: U2/U3

Diameter(mm)	Length(mm)	Width(mm)	Proof	Breaking
14	99	56	82	116
17.5	124	70	127	17
19	135	76	150	211
20.5	146	82	175	244
16	114	64	107	150
22	156	88	200	280
24	170	96	237	332
26	185	104	278	389
28	199	112	321	449
30	213	120	368	514
32	227	128	417	583
34	241	136	468	655
36	256	144	523	732
38	271	152	581	812
40	284	160	640	896
42	300	168	640	896
44	312	176	769	1080
46	327	184	837	1170
48	341	192	908	1270
50	355	200	981	1370
52	369	208	1060	1480
54	383	216	1140	1590
56	398	224	1220	1710
58	412	232	1290	1810
60	426	240	1380	1940
62	440	248	1470	2060
64	454	256	1560	2190
66	469	264	1660	2310
62	440	248	2060	2940
68	483	272	1750	2450
70	497	280	1840	2580
73	518	292	1990	2780
76	540	304	2150	3010
78	554	312	2260	3160
81	575	324	2410	3380
84	596	336	2580	3610
87	618	348	2750	3850
90	639	360	2920	4090
92	653	368	3040	4260
95	675	380	3230	4510
97	689	388	3340	4680
100	710	400	3530	4940
102	724	408	3660	5120
105	746	420	3850	5390
107	760	428	3980	5570
111	788	444	4250	5940
114	809	456	4440	6230
117	831	468	4650	6510
120	852	480	4850	6810
122	866	488	5000	7000
124	880	496	5140	7200
127	902	508	5350	7490
130	923	520	5570	7800
132	937	528	5720	8000
137	973	548	6080	8510
142	1008	568	6450	9030
147	1044	588	6840	9560
152	1079	608	7220	10100
157	1115	628	7600	10640
162	1150	648	7990	11180
