HVG MARINE MOORING EQUIPMENT 0321: Anchor Chain Swivel

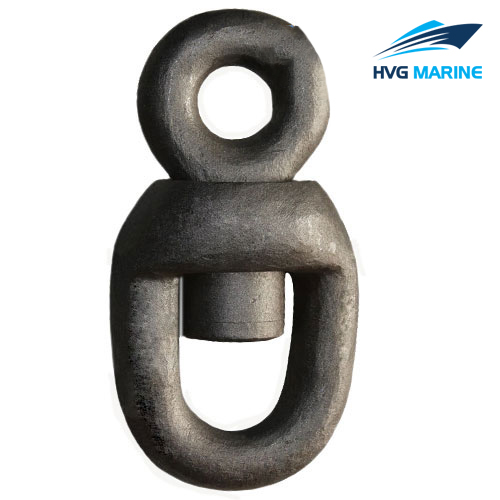

Anchor chain swivel is a special rotary ring to prevent the twisting of anchor chains. It connects with Grade 2 or Grade 3 anchor chains. Swivel is made from steel and its surface is hot dip galvanized. Swivel has different sizes to meet customer’s special need.

We supply all types of marine equipment including both the standard and customized products. If you’re interested in our products, please feel free to contact us.

Specification

1. Model Type: Swivel = SW
2. Grade 2 or Grade 3
3. Nominal Diameter: 14mm to 162mm
4. Proof Load: 82KN to 11180KN
5. Breaking Load: 116KN to 15980KN
6. Material: Steel
7. Surface Treatment: Hot Dip Galvanized and Eletro-galvanized
8. Black Paint or Other Color up to Customer’s Requirement
9. Standard or Customized Production
10. Quality Controlled Product
11. Certificate: ABS, CCS, LR, BV, RINA, KR, DNV etc.

Drawing:

Technical specification:

Technical specification

Unit:mm

Model Type	Max. Diameter of Steel Wire	D	D1	D2	L	L1	L2	L3	B	B1	H	H1	H2	Foot Bolts				Weight(kg)
Model Type	Max. Diameter of Steel Wire	D	D1	D2	L	L1	L2	L3	B	B1	H	H1	H2	Thread Diameter	Quantity	B	b	Weight(kg)
A13	13.0	170	330	530	350	528	584	1161	560		420	685	670	M16	6	240	10	69
A17	17	230	170	670	450	628	684	1281	620	925	495	830	745	M16	8	180	10	86
A21	20.5	280	560	760	500	700	770	1340	650	945	535	915	875	M16	8	190	40	118
A26	26	340	660	860	550	750	820	1425	695	972	610	1040	950	M16	8	205	40	131
A32	32	425	800	1000	650	850	920	1510	740	1024	665	1165	1510	M16	8	220	40	172
