• MOORING EQUIPMENT 0175
    HVG MARINE MOORING EQUIPMENT 0175

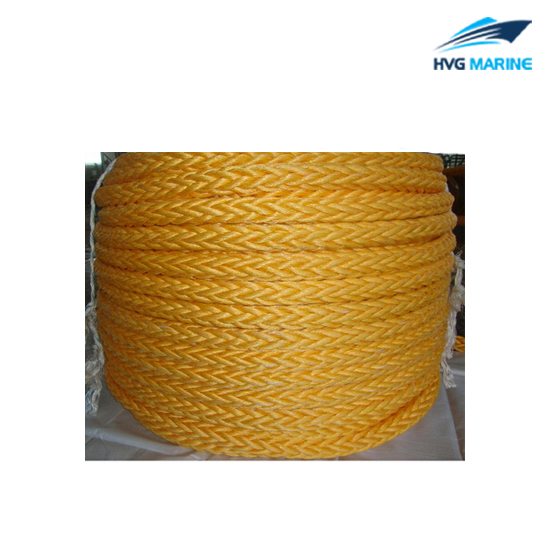

    HVG MARINE MOORING EQUIPMENT 0175: 12 – Strand Polyester and Polypropylene Mixed Rope

    HVG MARINE MOORING EQUIPMENT 0175 has low elastic elongation, stronger resistance to cut and abrasion. The rope keeps same strength no matter in air or in sea, and it floats. Our company provides various type and size about rope with high quality and competitive price. If you are interested in this product, please feel free to contact us at www.hvgmarine.com

    Product details:

    • Specific Gravity: 0.95 (floating)
    • Working Temperature: 80℃
    • Melting Point: 165℃/260℃
    • U.V. Resistance: Excellent
    • Chemical Resistance: Excellent
    • Abrasion Resistance: Excellent
    • Packing: Packaged with bags, standard export carton or by customer requirments
    • Our advantages: quality assurance, experienced staffs, professional service, competitive price, etc.
    • Certifications: GL, ABS, CCS, ISO, NK, BV, LR, DNV, RS, etc.

    Notes: Special specification and marks can be made according to customers requirements

    Technical specification:

    • Parameter Table:
    Specification PA Multifilament Polyester Polypropylene PET/PP Mixed
    Dia Cir Ktex KN Ktex KN Ktex KN Ktex KN
    20 2-1/2 250 85 304 67 181 56 194 68.7
    24 3 360 118 437 95 260 80 279 96.3
    28 3-1/2 490 160 595 125 354 106 380 130
    32 4 640 212 777 160 463 140 479 167
    36 4-1/2 810 265 984 200 586 170 629 210
    40 5 1000 315 1210 250 723 210 776 257
    44 5-1/2 1210 375 1470 300 875 250 939 308
    48 6 1440 450 1750 355 1040 300 1110 364
    52 6-1/2 1700 530 2050 425 1220 355 1320 424
    56 7 1970 600 2380 475 1420 400 1520 489
    60 7-1/2 2260 670 2730 530 1630 450 1750 558
    64 8 2570 750 3110 600 1850 500 1990 631
    72 9 3250 950 3930 750 2340 630 2520 789
    80 10 4010 1180 4860 950 2890 800 3110 963
    88 11 4860 1400 5880 1120 3500 950 3750 1160
    96 12 5780 1700 6990 1320 4170 1120 4470 1370
    104 13 6780 1900 8210 1600 4890 1320 5260 1590
    112 14 7870 2240 9520 1800 5670 1500 6050 1840
    120 15 9030 2500 10900 2000 6510 1700 6980 2100
    128 16 10100 2800 12400 2360 7410 2000 7950 2370
    136 17 11600 3150 14000 2650 8360 2240 8950 2660
    144 18 13000 3550 15700 3000 9370 2500 10100 2970
    160 20 16100 4500 19400 3550 11600 3000 12500 3630
