MOORING EQUIPMENT 0172
    • MOORING EQUIPMENT 0172
    HVG MARINE MOORING EQUIPMENT 0172

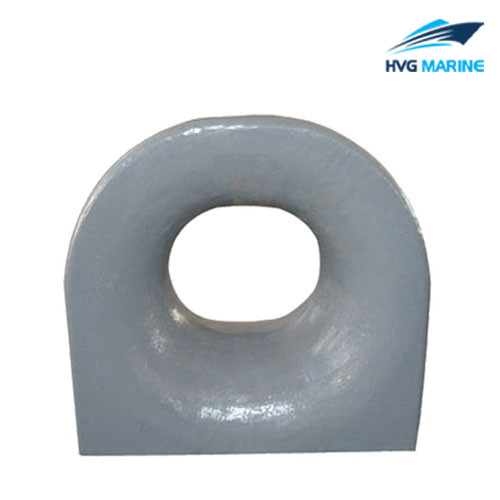

    HVG MARINE MOORING EQUIPMENT 0172: Panama Chocks

    Panama chocks are very important mooring equipment. It bears tremendous loads when mooring the vessels.  If you’re interested in our chocks, please feel free to contact us.

    Specification :

    • Material: Cast Steel
    • Nominal Size:310mm,360mm
    • Weight: 190kg~207kg
    • Welded Position: Deck
    • Certificate: CCS,DNV,ABS,BV,LR,RS,KR

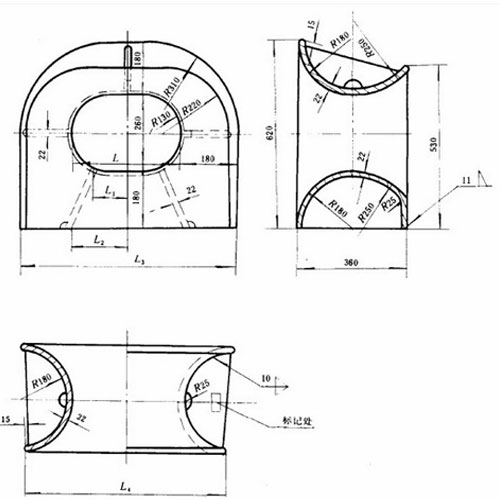

    Drawing:

    Technical specification:

    • Technical specification

    Size(mm)L

    L1

    L2

    L3

    L4

    Weight(kg)

    310

    85

    155

    670

    620

    190

    360

    110

    180

    720

    670

    207
