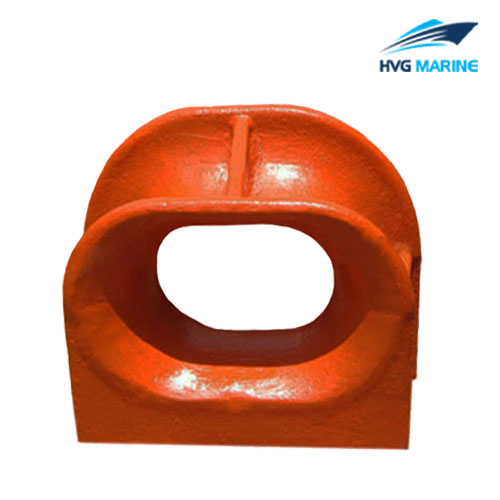

HVG MARINE MOORING EQUIPMENT 0170: Panama Chocks
Panama chocks are very important mooring equipment. It bears tremendous loads when mooring the vessels. If you’re interested in our chocks, please feel free to contact us.
Specification :

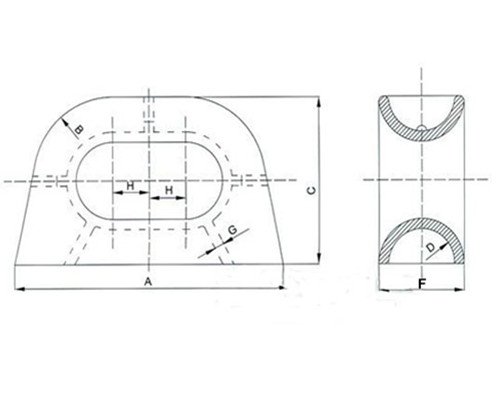

Drawing:
|
Nominal Dia |
Model No. |
Size(mm) |
Weight(kg) |
||||||
|
A |
B |
C |
D |
F |
G |
H |
|||
|
6“×12“ |
S-1097 |
558 |
165 |
330 |
61 |
178 |
20 |
76 |
71 |
|
7“×14“ |
S-1098 |
610 |
187 |
374 |
68 |
196 |
22 |
89 |
93 |
|
8“×16“ |
S-1105 |
626 |
257 |
414 |
80 |
242 |
25 |
101 |
152 |
|
9“×18“ |
S-1106 |
762 |
235 |
470 |
83 |
260 |
28 |
114 |
180 |
|
10“×20“ |
S-1101 |
812 |
257 |
514 |
90 |
260 |
30 |
127 |
225 |
