HVG MARINE MOORING EQUIPMENT 0162

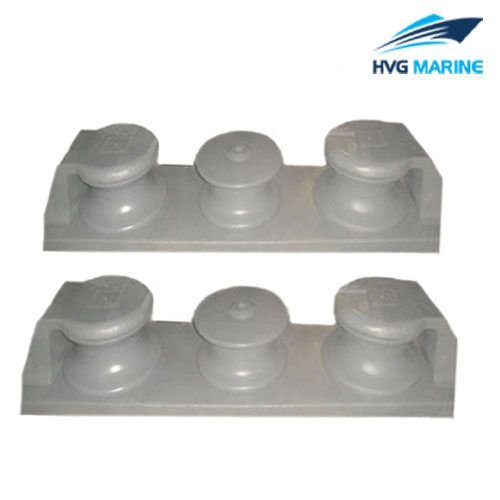

HVG MARINE MOORING EQUIPMENT 0162: Three Roller Chock

Marine chocks have multiple forms such as closed chock, open chock, no-roller chock, roller chock. It is mainly divided into two categories: no-roller chock and roller chock.Generally, marine chock is made by casting with intergral and modular forms. Marine cast chocks are normally mounted on the gunwale of the bow and poop. Roller chock can reduce the friction to mooring rope.

Specification :

Material: Steel
Technology: Casting
Standard: CB/T 38-1999
Certificate: CCS,DNV,ABS,BV,LR,RS,KR

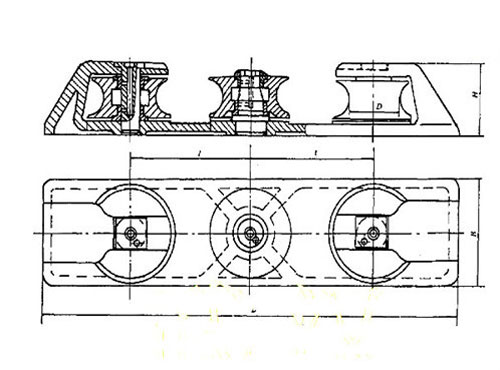

Drawing:

Technical specification:

Technical specification

Unit:mm

Nominal	Max Break KN	Steel Rope	Rope	L	B	H	L	D	Weight(kg)
75	23.3	7.4	12	550	170	116	150	75	27
100	52.5	11	18	750	200	147	210	100	60
125	93.4	15	24	920	250	173	260	125	116
150	145.8	18.5	30	1120	300	201	320	150	198
200	246.6	24	40	1420	370	251	410	200	398
250	373.6	30	48	1780	470	300	520	250	767
300	472.7	33.5	56	2120	550	353	620	300	1240
350	583.5	37.5	64	2440	640	386	720	350	1915
