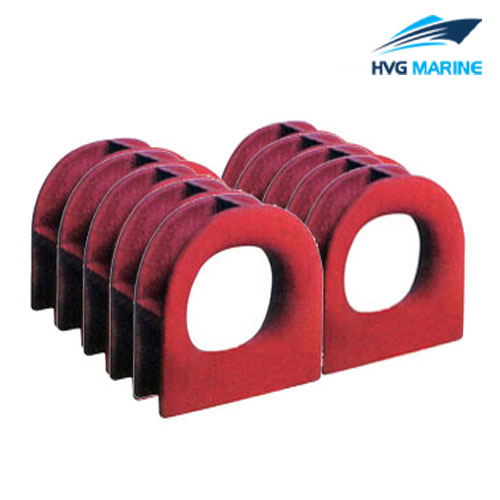

    HVG MARINE MOORING EQUIPMENT 0158:  Closed Chock

    Closed chock is one form of mooring chock which used to guide the mooring ropes. HVG MARINE MOORING EQUIPMENT 0158 closed chock is made according to marine standard of Japanese Standard Association. JIS F-2005 is made of cast steel. Its surface is galvanized, polished and painted to be smooth,which can reduce the friction of the rope. We can also produce the customized chocks for your specific need. If you’re interested in our mooring chocks, please feel free to contact us.

    Specification :

    • Model Type: HVG MARINE MOORING EQUIPMENT 0158
    • Material: Cast Steel
    • Nominal Size: 100mm~200mm, 250mm~500mm
    • Weight: 3.7kg~24kg, 48kg~232kg
    • Certificate: CCS,DNV,ABS,BV,LR,RS,KR

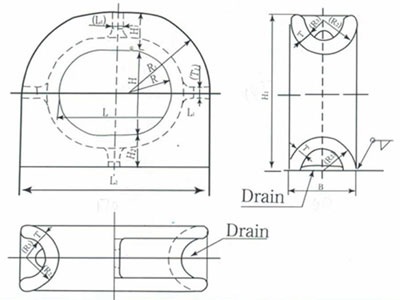

    Drawing :



    Technical specification:

    • Technical specification

    Unit:mm

    Nominal Size

    L

    L1

    L2

    B

    H

    H1

    H2

    H3

    R

    R1

    T

    (T1)

    (R2)

    (R3)

    Welding Length

    Calculated Mass(kg)

    Dia of Applicable Rope for Reference

    Wire Rope

    Hemp Rope

    Fiber Rope

    100

    100

    35

    170

    60

    76

    141

    30

    35

    38

    73

    12

    (10)

    (30)

    (18)

    7

    3.7

    14(6×12)

    24

    18

    150

    150

    50

    250

    90

    110

    205

    45

    50

    55

    105

    16

    (12)

    (45)

    (29)

    8

    10.5

    16(6×12)

    30

    22

    200

    200

    70

    370

    120

    150

    280

    60

    70

    75

    145

    20

    (16)

    (60)

    (40)

    9

    24.0

    18(6×12)

    40

    28
